Overview

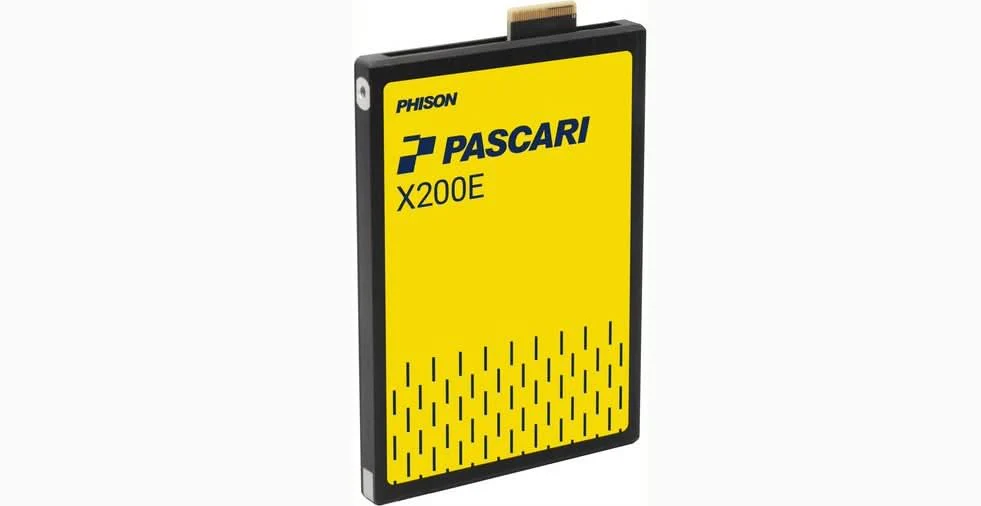

PHISON XP20DH033T20E214T0910 Pascari X200E 3200 GB E3.S Single Port PCIe Gen5x4 Opal Security SSD

Specifications

Model Number:  XP20DH033T20E214T0910

Brand:   PHISON

Alt Part Number(s):    XP20DH033T20E214T0910

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XP20DH033T20E214T0910

Capacities: 3200 GB

Form Factor: E3.S

Interface: Single Port

Security: Opal

PCIe Interface: PCIe Gen5x4

Single Port: x4 lanes

PCIe AER (Advanced Error Reporting): Yes

Maximum Sequential 128KB Read/Write (QD=32, Workers=1)(MB/s): 14,000/8,500

Maximum 4K Sustained Random Read/Write (QD=64, Workers=8)(IOPS): 3,000,000/800,000

Latency 4K Sustained Random Read/Write (µs): 60/10(QD=1, Workers=1); 85/130(QD=4, Workers=8); 190/1250(QD=64, Workers=8)

IOPS Consistency 4KB Sustained Random Read/Write: 95%/95%

4KB Sustained Random Read/Write Quality of Service (QoS=99%)(4KB): 80/12(QD=1, Workers=1); 130/130(QD=4, Workers=8); 500/1250(QD=64, Workers=8)

DWPD: 3DWPD

TBW: 17520 TB

LBAF: 512 / 512+ 8 / 4K / 4K + 8 / 4K + 64 Bytes

MTBF: 2.5 million hours

UBER (Uncorrectable Bit Error Rates): 3D NAND < 1 sector per 10^18 bits read

ECC: Yes

Static and Dynamic Wear Leveling: Yes

Bad Block Management: Yes

Deallocate (TRIM) Command: Yes

SMART: Yes

Over-Provision: Yes

Firmware Upgrade: Yes

Temperature Range Operation: 0°C - 70°C with specified airflow

Temperature Range Storage: -40°C - 85°C

RoHS Compliant: Yes

Namespace: Supported

Single Port: Supported

Reservation: Supported

Metadata Protection: Supported

Thermal Throttling: Supported

Power Loss Protection: Supported

Hardware AES-XTS 256-bit Encryption: Supported

Support SMBus: Yes

Support NVMe-MI (Management Interface): Yes

Data Retention: 3 months

Compliance: PCIe Express Base 5.0

NVMe Version: NVMe Express 2.0

NVMe Management Interface: NVMe Express Management Interface Rev 1.2

Module Specification: PCIe Express SFF-8639 Module Specification Revision 4.0, Version 1.0

Flash Configuration: 256GB x 16

Flash Type: 64CE, 512Gb QDP

Flash Structure: 256GB x 16

Flash Type: 3D eTLC

TBW: 17520

DWPD: 3

Supply Voltage 12v: +/- 10%

12v Noise Level: 240mVp-p, 0-20MHz

12v Minimum Off Time: 500ms

3.3v Aux: +/- 15%

Inrush Current: 12v 2.5A
