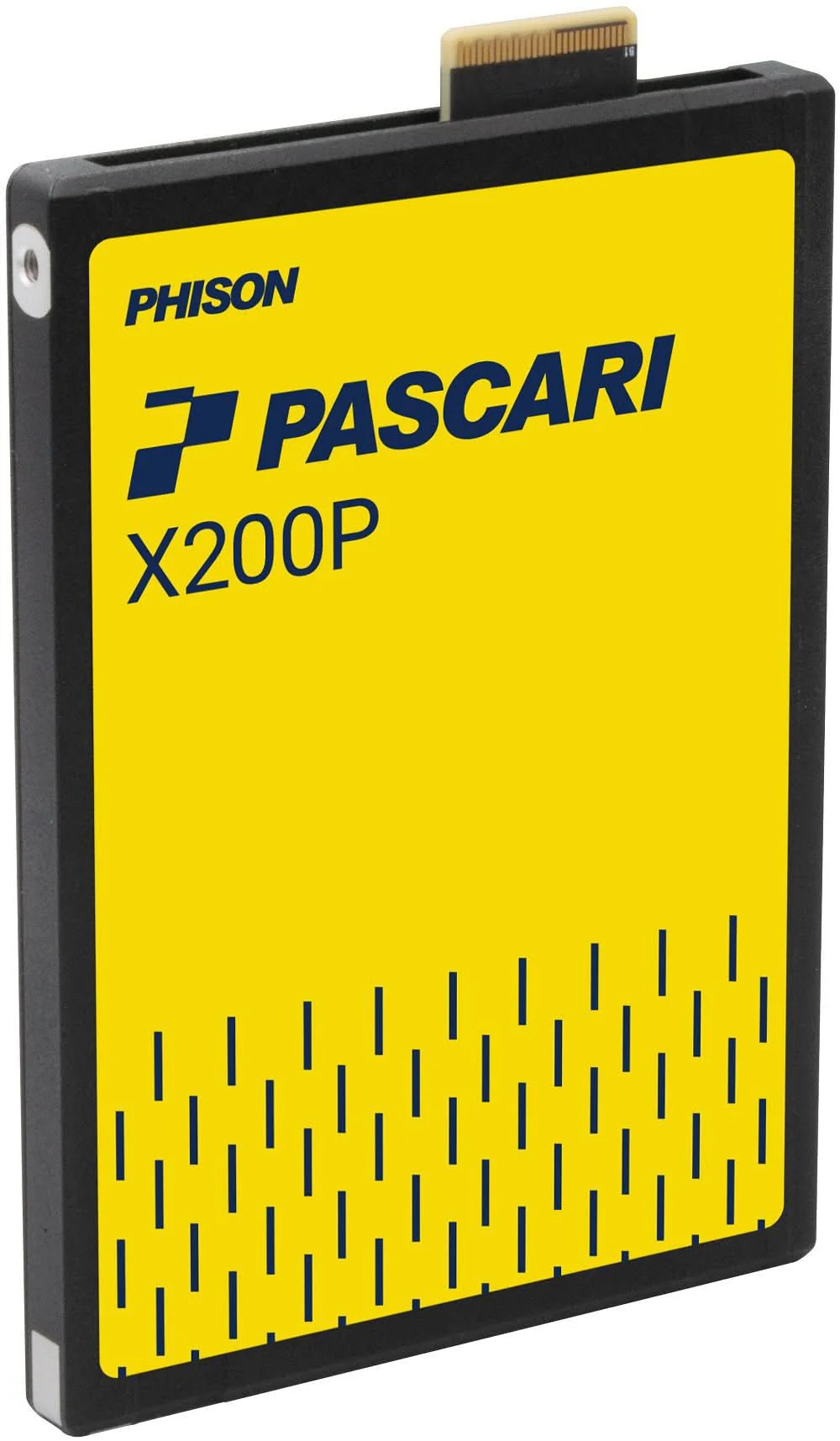

PHISON XP20DH0315T3P2116T310 Pascari X200P 15360 GB E3.S Single Port PCIe Gen5x4 Opal Security SSD
Overview
PHISON XP20DH0315T3P2116T310 Pascari X200P 15360 GB E3.S Single Port PCIe Gen5x4 Opal Security SSD
Specifications
Model Number:
Brand: PHISON
Alt Part Number(s): XP20DH0315T3P2116T310
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XP20DH0315T3P2116T310
Storage Capacity: 15.36 TB
Form Factor: E3.S
Security: Opal
Drive Interface: PCI Express NVMe
Drive Interface Standard: PCIe Gen5 x4 (Single Port)
Compliance:
- PCI Express Base Specification Rev. 5.0
- NVM Express Base Specification Rev. 2.0
- NVM Express Management Interface Rev. 1.2
- PCI Express SFF-8639 Module Specification Revision 4.0, Version 1.0
Flash Type: 3D eTLC
Flash Configuration: 512 GB x 32
Maximum Sequential Read: Not specified
Maximum Sequential Write: Not specified
Power Consumption (Active): 25 W
Power Consumption (Idle): < 9 W
Inrush Current: 2.5 A
Supply Voltage:
- 12V ±10% (240mVp-p, 0–20 MHz)
- 3.3V Aux ±15%
- 12V Min Off Time: 500 ms
Endurance (DWPD): 1
Endurance (TBW): 28,032 TB
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read (3D NAND)
LBA Formats: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
Advanced Flash Management:
- ECC
- Static and Dynamic Wear Leveling
- Bad Block Management
- Deallocate (TRIM) Command
- SMART
- Over-Provisioning
- Firmware Upgrade
Temperature (Operating): 0°C to 70°C (with specified airflow)
Temperature (Non-Operating): -40°C to 85°C
Data Retention: 3 months
Physical Dimensions: 112.75 mm (L) x 76 mm (W) x 7.45 mm (H)
Weight: < 250 g
Enterprise Feature Support:
- Namespace
- Single Port
- Reservation
- Metadata Protection
- Thermal Throttling
- Power Loss Protection
- Hardware AES-XTS 256-bit Encryption
- SMBus Support
- NVMe-MI (Management Interface)
RoHS Compliance: Yes
