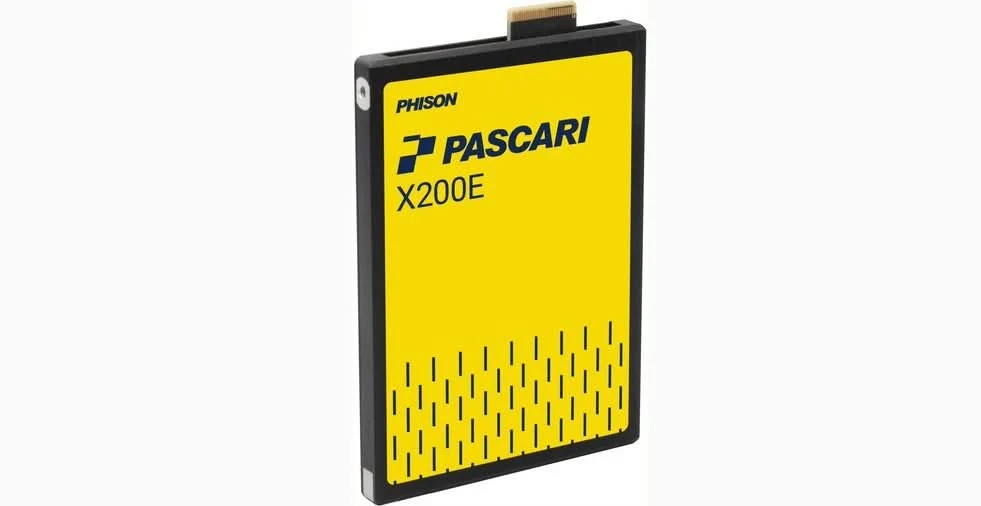

PHISON XP20DH026T40E218T1910 Pascari X200E 6.4TB E3.S Single Port PCIe SED SSD
Overview
PHISON XP20DH026T40E218T1910 Pascari X200E 6.4TB E3.S Single Port PCIe 5.0 1x4 SED SSD
Specifications
Model Number: XP20DH026T40E218T1910
Brand: PHISON
Alt Part Number(s): XP20DH026T40E218T1910
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XP20DH026T40E218T1910
Capacity: 6.4TB
Security: SED
Form Factor: E3.S
Interface: PCIe 5.0 1x4
NVMe: 2.0
NAND Flash: 3D TLC
Sequential Read (MB/s): 14,800
Sequential Write (MB/s): 8,700
4K Random Read (IOPS): 3,200K
4K Random Write (IOPS): 900K
Read Latency (Typ., s): 60
Write Latency (Typ., s): 10
Active (W): 23
Idle (W): 5
DWPD: 3
UBER: < 1 sector per 10^18 bits read
MTBF (million hours): 2.5
Operating Temp (°C): 0 - 70
Non-Operating Temp (°C): -40 - 85
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
