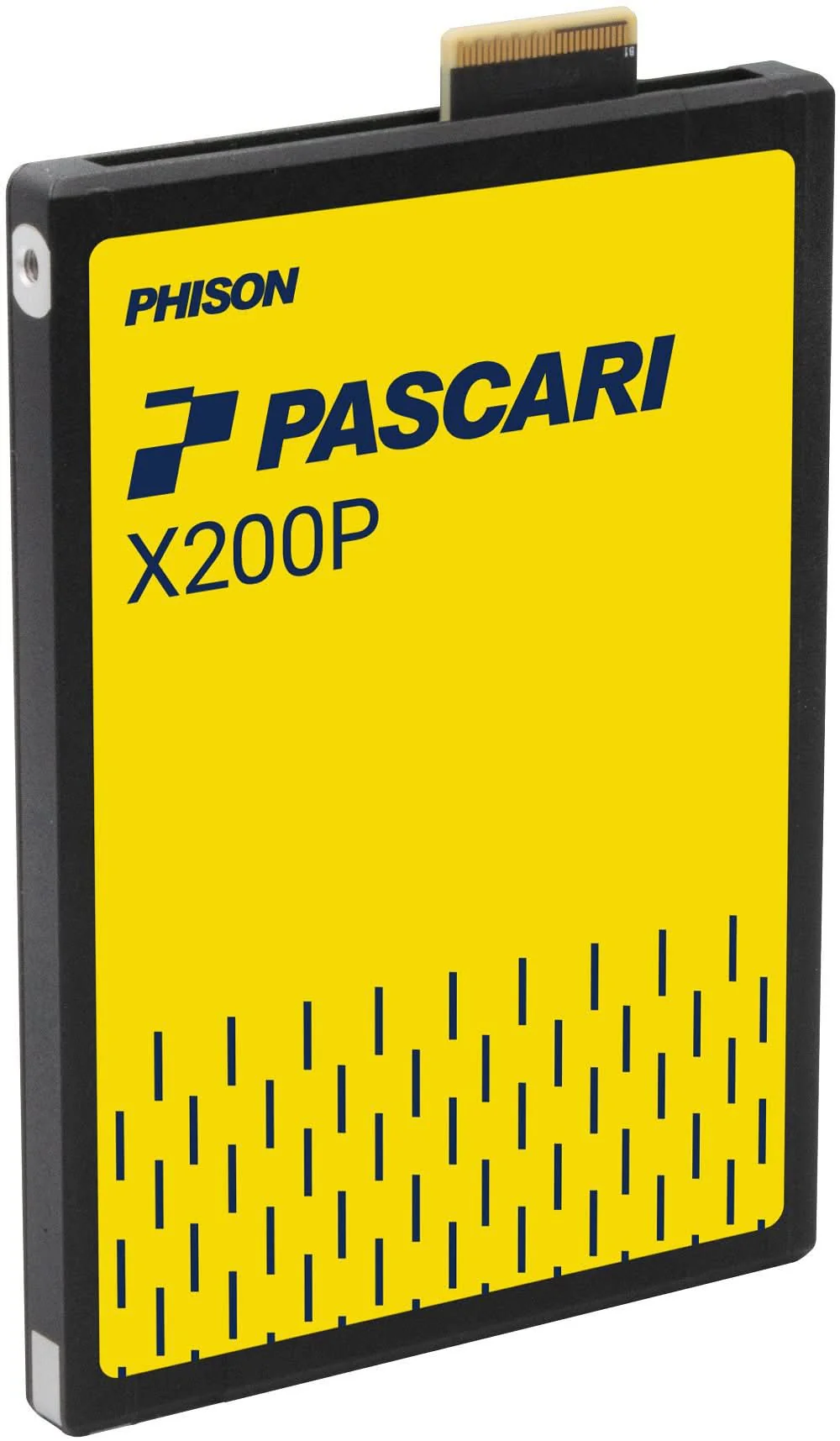

PHISON XP208H033T84P224T0910 Pascari X200P 3840 GB U.2 15mm Single Port PCIe Gen5x4 Opal Security SSD
Overview
PHISON XP208H033T84P224T0910 Pascari X200P 3840 GB U.2 15mm Single Port PCIe Gen5x4 Opal Security SSD
Specifications
Model Number: XP208H033T84P224T0910
Brand: PHISON
Alt Part Number(s): XP208H033T84P224T0910
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XP208H033T84P224T0910
Capacities: 3840 GB
Form Factor: U.2 15mm
Security: Opal
PCIe Interface: PCIe Gen5x4
Single Port: x4 lanes
PCIe AER: Advanced Error Reporting
Max Seq. 128KB Read/Write: 14,000 / 8,500 MB/s (QD=32, Workers=1)
Max 4K Random Read/Write: 3,000,000 / 360,000 IOPS (QD=64, Workers=8)
Latency 4K R/W (µs):
60 / 10 (QD=1, Workers=1)
85 / 160 (QD=4, Workers=8)
190 / 2000 (QD=64, Workers=8)
IOPS Consistency (4KB R/W): 95% / 95%
QoS (99%) 4KB R/W Latency (µs):
80 / 12 (QD=1, Workers=1)
130 / 160 (QD=4, Workers=8)
500 / 2000 (QD=64, Workers=8)
Active Power: 25 W
Idle Power: <9 W
Inrush Current: 2.5 A
DWPD: 1
TBW: 7008 TB
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read
ECC: Yes
Wear Leveling: Static & Dynamic
Bad Block Management: Yes
Deallocate (TRIM): Supported
SMART: Supported
Over-Provisioning: Yes
Firmware Upgrade: Yes
Temperature (Operating): 0°C to 70°C (with specified airflow)
Temperature (Storage): -40°C to 85°C
RoHS Compliant: Yes
Namespace Support: Yes
Reservation: Yes
Metadata Protection: Yes
Thermal Throttling: Yes
Power Loss Protection: Yes
AES-XTS 256-bit Encryption: Yes
SMBus Support: Yes
NVMe-MI Support: Yes
Data Retention: 3 months
Compliance:
PCIe Base 5.0
NVMe 2.0
NVMe-MI 1.2
SFF-8639 Rev 4.0, Ver 1.0
Flash Configuration: 256GB x 16
Flash Type: 64CE, 512Gb QDP, 3D eTLC
Supply Voltage: 12V ±10%
12V Noise Level: 240 mVp-p (0–20 MHz)
12V Min Off Time: 500 ms
3.3V AUX: ±15%
Inrush Current: 12V 2.5 A
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
