PHISON XP208H031T92P322T0410 Pascari X200P 1.92TB U.2 PCIE Single Port ISE SSD
Overview

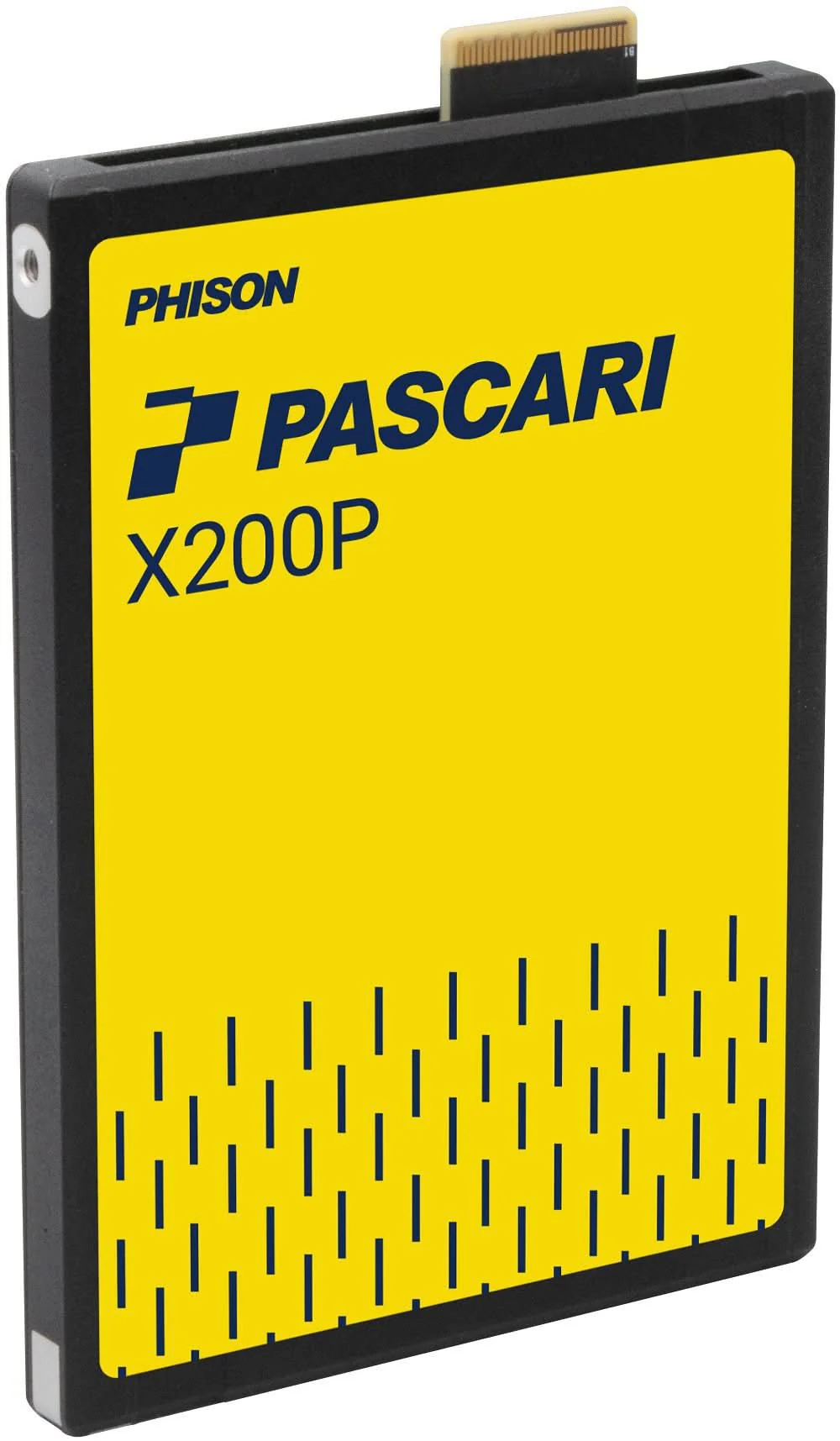

PHISON XP208H031T92P322T0410 Pascari X200P 1.92TB U.2 PCIE 5.0 Single Port ISE SSD
Specifications
Model Number: XP208H031T92P322T0410
Brand: PHISON
Alt Part Number(s): XP208H031T92P322T0410
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XP208H031T92P322T0410
Capacity: 1.92 TB
Form Factor: U.2 15mm
PCIe Interface
PCIe Gen5x4
Single Port x4 lanes
PCIe AER (Advanced Error Reporting)
Compliance
PCI Express Base Specification Rev. 5.0
NVM Express Base Specification Rev. 2.0
NVM Express Management Interface Rev 1.2
PCI Express SFF-8639 Module Specification Revision 5.0, Version 0.7
Performance
Sequential Read: up to 14,800 MB/s
Sequential Write: up to 4,300 MB/s
Random Read: up to 2,400K IOPS
Random Write: up to 140K IOPS
Power Consumption
128K Active Read (Avg. RMS): 16 W
128K Write (Avg. RMS): 14 W
4KB Active Read (Avg. RMS): 15 W
4KB Active Write (Avg. RMS): 16 W
4KB 70/30 Random Read/Write (Avg. RMS): 14 W
Idle Power: 5 W
Endurance / Reliability
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read
DWPD: 1
TBW: 3,504 TB
Environmental Specification
Temperature Range:
Operating: 0°C – 70°C (with specified airflow)
Non-operating: -40°C – 85°C
Shock:
Operating: 500G, 2ms
Non-operating: 1000G, 0.5ms
Vibration:
Operating: 2.17 Grms (7 – 800 Hz)
Non-operating: 16.3 Grms (10 – 2000 Hz)
Drop: 80 cm, 6 surfaces
Bending: 50 N, 60 s
Certifications and Declarations:
CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Product Ecological Compliance:
RoHS compliant
Feature Support
LBAF: 512 / 512+8 / 4K / 4K 8 / 4K+64 Bytes
128 Namespaces
Single Port
Reservation
Metadata Protection
Thermal Throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
Support SMBus
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
