Overview

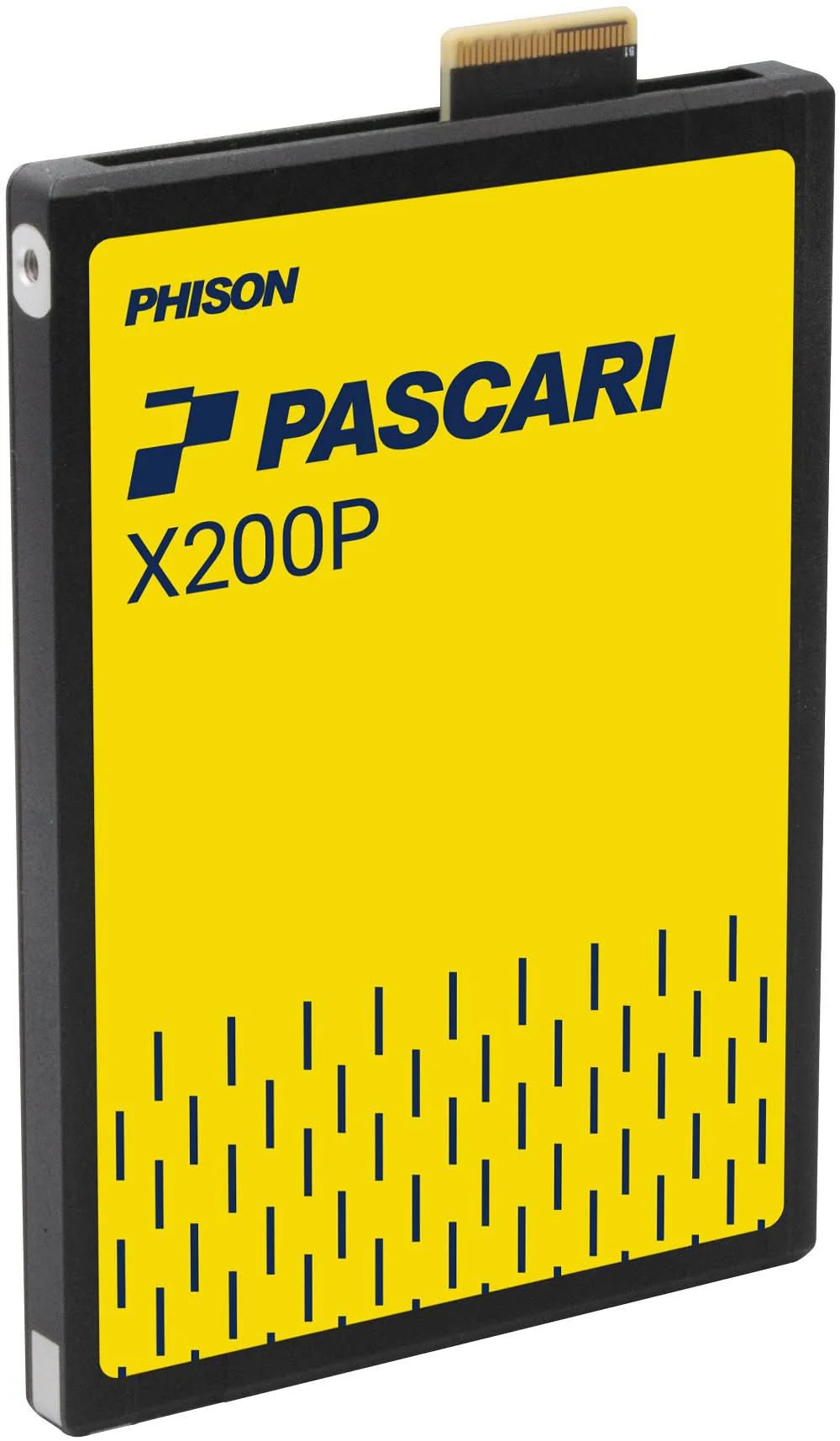

PHISON XP208H0315T3P2116T310 Pascari X200P 15360 GB U.2 15mm Single Port PCIe Gen5x4 Opal Security SSD

Specifications

Model Number:  XP208H0315T3P2116T310

Brand:   PHISON

Alt Part Number(s):    XP208H0315T3P2116T310

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XP208H0315T3P2116T310

Capacities: 15360 GB

Form Factor: U.2 15mm

Security: Opal

PCIe Interface: PCIe Gen5x4

Single Port: x4 lanes

PCIe AER: Advanced Error Reporting

Active Power: 25 W

Inrush Current: 2.5A

Idle Power: <9W

DWPD: 1DWPD

TBW: 28032 TB

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

MTBF: 2.5 million hours

UBER (Uncorrectable Bit Error Rates): 3D NAND < 1 sector per 10^18 bits read

Advanced Flash Management: ECC, Static and Dynamic Wear Leveling, Bad Block Management, Deallocate (TRIM) Command, SMART, Over-Provision, Firmware Upgrade

Temperature (Operating): 0°C to 70°C (with specified airflow)

Temperature (Storage): -40°C to 85°C

RoHS Compliant

Enterprise Features: Namespace, Single Port, Reservation, Metadata Protection, Thermal Throttling, Power Loss Protection, Hardware AES-XTS 256-bit Encryption

Support SMBus

Support NVMe-MI (Management Interface)

Data Retention: 3 months

Compliance: PCIe Express Base 5.0, NVMe Express 2.0, NVMe Express Management Interface Rev 1.2, PCIe Express SFF-8639 Module Specification Revision 4.0, Version 1.0

Flash Configuration: 512GB x 32

Flash Type: 128CE, 512Gb ODP, 3D eTLC

Supply Voltage:
12v: ±10%
12v noise level: 240mVp-p (0–20 MHz)
12v minimum off time: 500 ms
3.3v aux: ±15%

Inrush Current: 12v 2.5A

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
