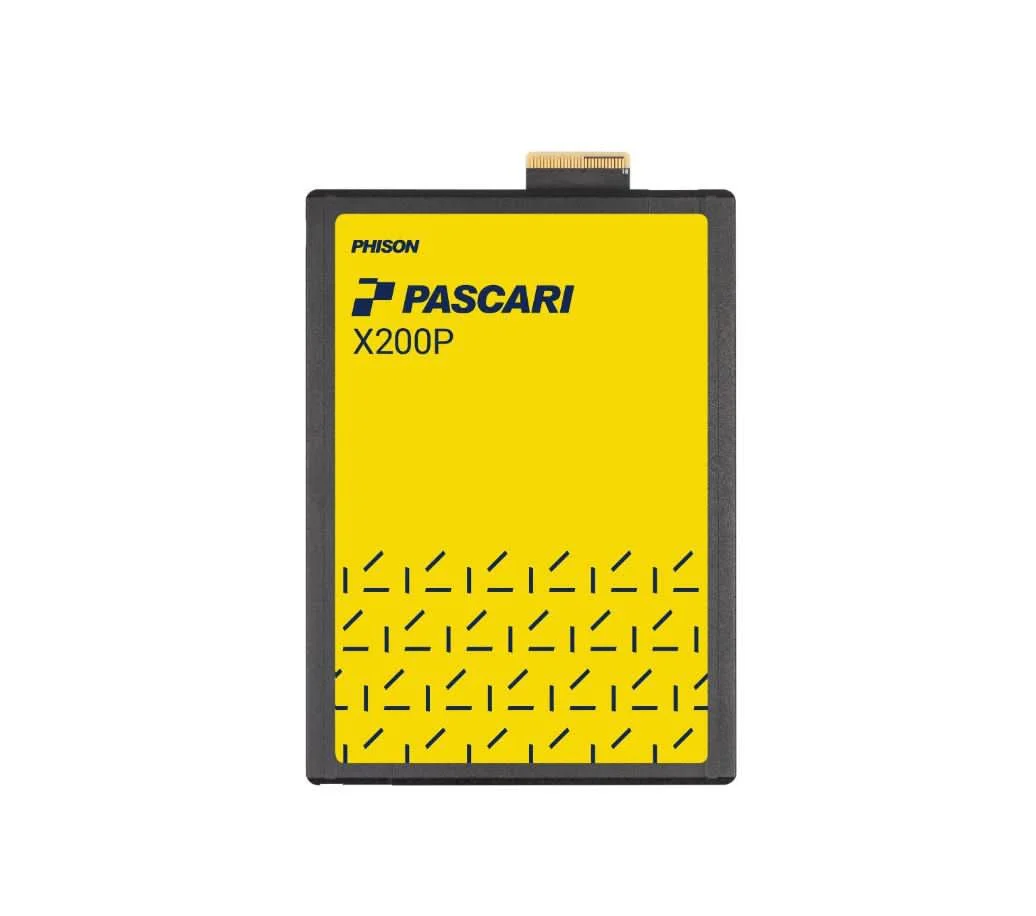

PHISON XP208H023T84P324T0910 Pascari X200P 3.84TB U.2 15mm PCIE 5.0 Single Port ISE Solid State Drive
Overview
PHISON XP208H023T84P324T0910 Pascari X200P 3.84TB U.2 15mm PCIE 5.0 Single Port ISE Solid State Drive
Specifications
Model Number: XP208H023T84P324T0910
Brand: PHISON
Alt Part Number(s): XP208H023T84P324T0910
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XP208H023T84P324T0910
Storage Capacity: 3.84 TB
Form Factor: U.2 15mm
Drive Interface: PCI Express NVMe
Drive Interface Standard: PCIe Gen5 x4 (Single Port)
NVMe Version: 2.0
Compliance:
- PCI Express Base Specification Rev. 5.0
- NVM Express Base Specification Rev. 2.0
- NVM Express Management Interface Rev. 1.2
- PCI Express SFF-8639 Module Specification Rev. 5.0, Version 0.7
Maximum Sequential Read: 14,800 MB/s
Maximum Sequential Write: 8,600 MB/s
Random 4KB Read: 3,300,000 IOPS
Random 4KB Write: 320,000 IOPS
Power Consumption (128K Read, Avg. RMS): 17 W
Power Consumption (128K Write, Avg. RMS): 21 W
Power Consumption (4KB Read, Avg. RMS): 17 W
Power Consumption (4KB Write, Avg. RMS): 22 W
Power Consumption (4KB 70/30 R/W, Avg. RMS): 18 W
Power Consumption (Idle): 5 W
Endurance (DWPD): 1
Endurance (TBW): 7,008 TB
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read
Operating Temperature: 0°C to 70°C (with specified airflow)
Non-Operating Temperature: -40°C to 85°C
Shock (Operating): 500G, 2ms
Shock (Non-Operating): 1000G, 0.5ms
Vibration (Operating): 2.17 Grms (7 - 800 Hz)
Vibration (Non-Operating): 16.3 Grms (10 - 2000 Hz)
Drop Tolerance: 80 cm, 6 surfaces
Bending Resistance: 50 N, 60s
Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Environmental Compliance: RoHS Compliant
Features:
- Power Loss Protection
- Hardware AES-XTS 256-bit Encryption
- Thermal Throttling
- Metadata Protection
- Reservation
- LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
- 128 Namespaces
- Single Port
- SMBus Support
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
