Overview

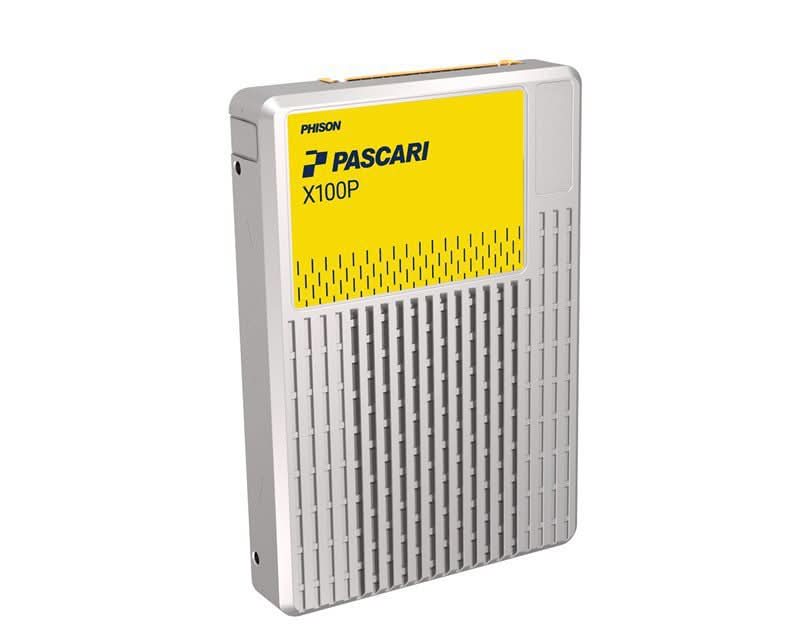

PHISON XP106H011T92P022T0400 Pascari X100P 1.92 TB U.2 Single Port PCIe Gen4x4 Non-Opal Security SSD

Specifications

Model Number:  XP106H011T92P022T0400

Brand:   PHISON

Alt Part Number(s):    XP106H011T92P022T0400

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XP106H011T92P022T0400

Capacities: 1.92 TB

Form Factor: U.2

Interface: Single Port

Security: Non-Opal

PCIe Interface
PCIe Gen4x4
Single Port x4 lanes
PCIe AER (Advanced Error Reporting)

Performance
Maximum Sequential Read / Write: 7000MB/s / 3500MB/s
Maximum Random Read / Write: 1600KIOPS / 95KIOPS
Sustained Random Read / Write Latency (µs): 110/15 (QD=1, Workers=1); 120/400 (QD=32, Workers=1); 450/5000 (QD=64, Workers=8)
IOPS Consistency: 95%
QoS (Quality of Service, 99%) Read / Write: 100/12 (QD=1, Workers=1); 160/350 (QD=32, Workers=1); 1000/5700 (QD=64, Workers=8)

DWPD: 1DWPD

TBW: 3504 TB

LBAF: 512 / 512+ 8 / 4K / 4K + 8 / 4K + 64 Bytes

MTBF: 2,500,000 hours

UBER (Uncorrectable Bit Error Rate): < 1 sector per 10^18 bits read

Advanced Flash Management
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade

Temperature Range
Operation: 0°C - 70°C with specified airflow
Storage: -40°C - 85°C

RoHS compliant

Enterprise Features Support List
Namespace
Single Port
Reservation
Metadata Protection
Thermal throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption

Support SMBus: Yes

Support NVMe-MI (Management Interface): Yes

Data Retention: 3 months

Compliance
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1
