Overview

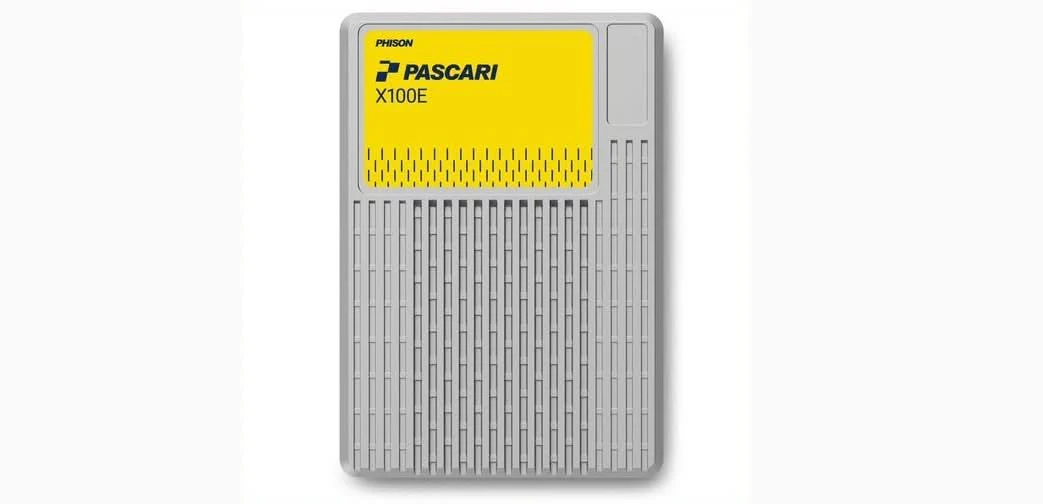

PHISON XP106H0112T8E0116T300 Pascari X100E 12.8 TB U.2 Single Port PCIe Gen4x4 Non-Opal Security SSD

Specifications

Model Number:  XP106H0112T8E0116T300

Brand:   PHISON

Alt Part Number(s):    XP106H0112T8E0116T300

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XP106H0112T8E0116T300

Capacities: 12.8 TB

Form Factor: U.2

Interface: Single Port

Security: Non-Opal

PCIe Interface:
PCIe Gen4x4
Single Port x4 lanes
PCIe AER (Advanced Error Reporting)

Performance:
Sequential 128KB Read/Write (QD=32, Workers=1)(MB/s): 7,000/6,800
4K Sustained Random Read/Write (QD=64, Workers=8)(IOPS): 1,600,000/480,000
Latency 4K Sustained Random Read/Write (µs): 100/15(QD=1, Workers=1); 110/150(QD=32, Workers=1); 450/1900(QD=64, Workers=8)
IOPS Consistency 4KB Sustained Random Read/Write: 95%/95%
4KB Sustained Random Read/Write Quality of Service (QoS=99%)(4KB): 100/12(QD=1, Workers=1); 120/80(QD=32, Workers=1); 600/1600(QD=64, Workers=8)

DWPD: 3DWPD

TBW: 70080 TB

LBAF: 512 / 512+ 8 / 4K / 4K + 8 / 4K + 64 Bytes

MTBF: 2,500,000 hours

UBER (Uncorrectable Bit Error Rates): < 1 sector per 10^18 bits read

Advanced Flash Management:
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade

Temperature Range:
Operation: 0°C - 70°C with specified airflow
Storage: -40°C - 85°C

RoHS compliant

Enterprise Features Support List

Namespace: Supported

Single Port: Supported

Reservation: Supported

Metadata Protection Thermal throttling: Supported

Power Loss Protection: Supported

Hardware AES-XTS 256-bit Encryption: Supported

Support SMBus: Yes

Support NVMe-MI (Management Interface): Yes

Data Retention: 3 months

Compliance:
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1

Supply Voltage:
12v: +/- 10%
12v noise level: 240mVp-p, 0-20MHz
12v min off time: 500ms
3.3v aux: +/- 15%

Inrush current: 12v 1.5A
