Overview

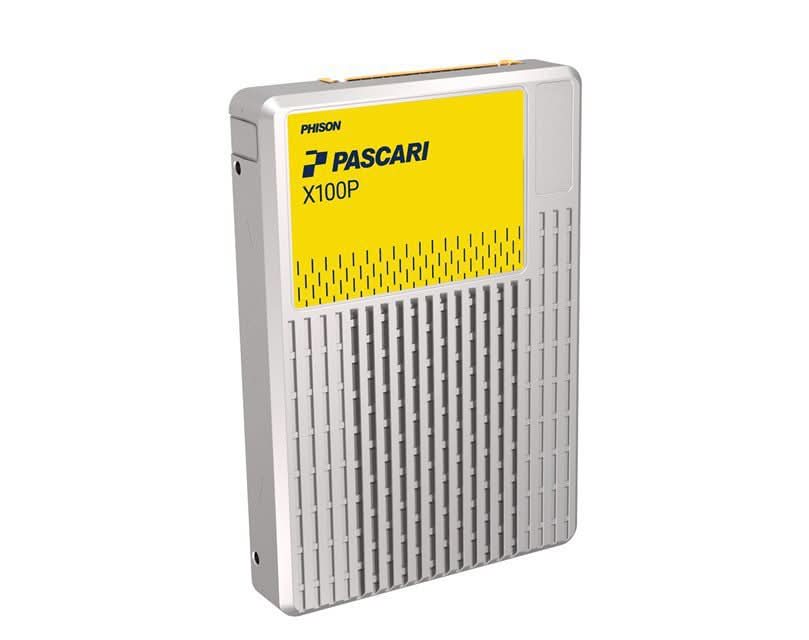

PHISON XP106H003T84P024T0900 Pascari X100P 3.84 TB U.2 Single Port PCIe Gen4x4 Non-Opal Security SSD

Specifications

Model Number:  XP106H003T84P024T0900

Brand:   PHISON

Alt Part Number(s):    XP106H003T84P024T0900

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XP106H003T84P024T0900

Capacities: 3.84 TB

Form Factor: U.2

Interface: Single Port

Security: Non-Opal

PCIe Interface:
PCIe Gen4x4
Single Port x4 lanes
PCIe AER (Advanced Error Reporting)

Performance:
Maximum Sequential Read / Write: 7000MB/s / 6700MB/s
Maximum Random Read / Write: 1600KIOPS / 170KIOPS
Sustained Random Read / Write Latency (µs): 100/15 (QD=1, Workers=1); 110/300 (QD=32, Workers=1); 450/4000 (QD=64, Workers=8)
IOPS Consistency: 95%
QoS (Quality of Service, 99%) Read / Write: 100/12 (QD=1, Workers=1); 140/200 (QD=32, Workers=1); 600/3200 (QD=64, Workers=8)

Power Consumption:
Random Read/Write (Typ): 13.3 / 15.5 W
Sequential Read/Write (Typ): 10.6 / 17.9 W
Inrush Current: 1.5A
Idle Power (Typ): 5.80 W

DWPD: 1DWPD

TBW: 7008 TB

LBAF: 512 / 512+ 8 / 4K / 4K + 8 / 4K + 64 Bytes

MTBF: 2,500,000 hours

UBER (Uncorrectable Bit Error Rates): < 1 sector per 10^18 bits read

Advanced Flash Management:
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade

Temperature Range:
Operation: 0 °C - 70 °C with specified airflow
Storage: -40 °C - 85 °C

RoHS compliant

Enterprise Features Support List

Namespace: Supported
Single Port: Supported
Reservation: Supported
Metadata Protection Thermal throttling: Supported
Power Loss Protection: Supported
Hardware AES-XTS 256-bit Encryption: Supported

Support SMBus: Yes

Support NVMe-MI (Management Interface): Yes

Data Retention: 3 months

Compliance:
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1
