Overview

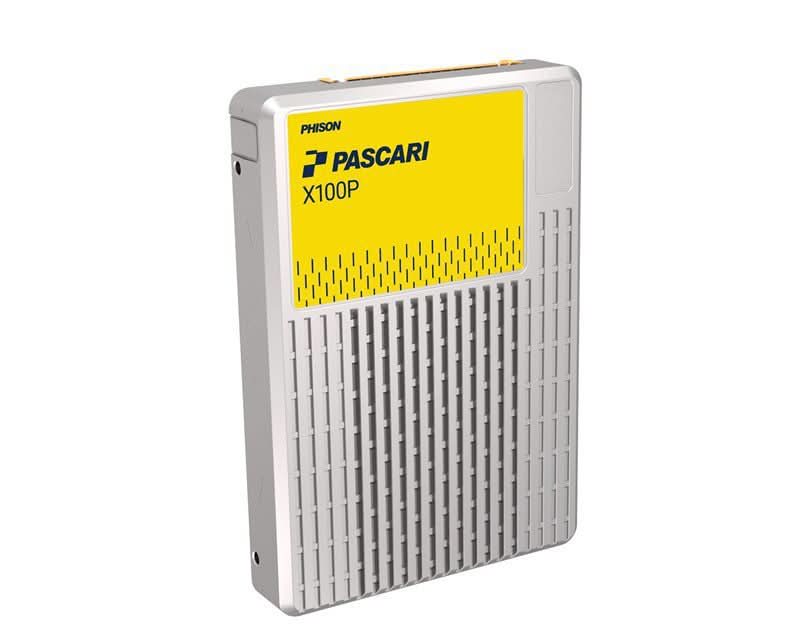

 PHISON XP106H0015T3P0116T300 Pascari X100P 15360GB U.2 Single Port PCIe Gen4x4 Non-Opal Security SSD

Specifications

Model Number:  XP106H0015T3P0116T300

Brand:   PHISON

Alt Part Number(s):    XP106H0015T3P0116T300

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XP106H0015T3P0116T300

Capacity: 15360GB

Form Factor: U.2

Interface: Single Port

Security: Non-Opal

PCIe Interface:
PCIe Gen4x4
Single Port x4 lanes
PCIe AER (Advanced Error Reporting)

Performance:
Maximum Sequential Read / Write: 7000MB/s / 6800MB/s
Maximum Random Read / Write: 1600KIOPS / 180KIOPS
Sustained Random Read / Write Latency (µs): 100/15 (QD=1, Workers=1); 110/300 (QD=32, Workers=1); 450/3800 (QD=64, Workers=8)
IOPS Consistency: 95%
QoS (Quality of Service, 99%) Read / Write: 100/12 (QD=1, Workers=1); 120/200 (QD=32, Workers=1); 600/3000 (QD=64, Workers=8)

Power Consumption:
Random Read/Write (Typ): 16.2/19.6 W
Sequential Read/Write (Typ): 12.3/20.1 W
Inrush Current: 1.5A
Idle Power (Typ): 7.32 W

DWPD: 1DWPD

TBW: 28032 TB

LBAF: 512 / 512+ 8 / 4K / 4K + 8 / 4K + 64 Bytes

MTBF: 2,500,000 hours

UBER (Uncorrectable Bit Error Rates): < 1 sector per 10^18 bits read

Advanced Flash Management:
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade

Temperature Range:
Operation: 0 °C - 70 °C with specified airflow
Storage: -40 °C - 85 °C

RoHS compliant

Enterprise Features Support List
Namespace: Supported
Single Port: Supported
Reservation: Supported
Metadata Protection Thermal throttling: Supported
Power Loss Protection: Supported
Hardware AES-XTS 256-bit Encryption: Supported

Support SMBus: Yes

Support NVMe-MI (Management Interface): Yes

Data Retention: 3 months

Compliance:
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1
