Overview

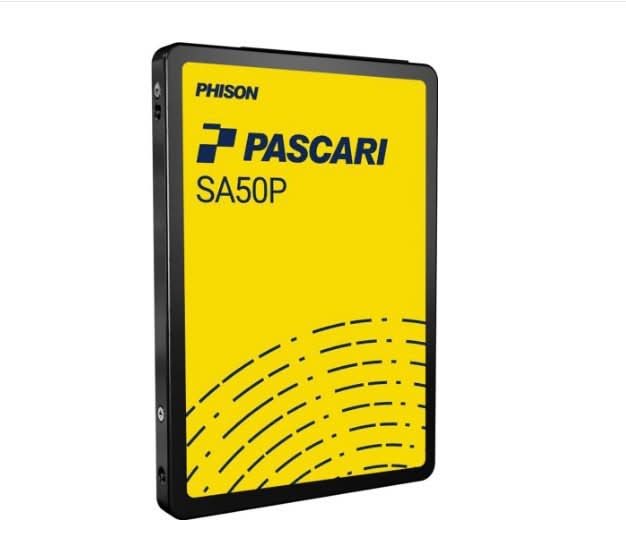

 PHISON S1201K00480GP02576G00 Pascari SA50P 480GB 2.5in SATA III Non-SED SSD

Specifications

Model Number:  S1201K00480GP02576G00

Brand:   PHISON

Alt Part Number(s):    S1201K00480GP02576G00

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  S1201K00480GP02576G00

Capacity: 480GB

Security: Non-SED

Form Factor: 2.5" SSD

SATA Interface: SATA Gen3

Compliance: Serial ATA Revision 3.2

Performance
128KB Sequential Read (QD=32, Job=1): 530 MB/s
128KB Sequential Write (QD=32, Job=1): 360 MB/s
4KB Random Read (QD=32, Job=1): 92K IOPS
4KB Random Write (QD=32, Job=1): 20K IOPS

Power Consumption
128KB Sequential Read (Average RMS, W): 2.0
128KB Sequential Write (Average RMS, W): 2.6
4KB Random Read (Average RMS, W): 2.1
4KB Random Write (Average RMS, W): 2.5
4KB 70/30 Random Read/Write (Average RMS, W): 2.3
Idle: 1.3 W

Endurance/Reliability
MTBF: 2.0 million hours
UBER: < 1 sector per 10^17 bits Read
DWPD: 1
TBW: 876TB

Environmental Specifications
Temperature Range:
Operating: 0°C ~ 70°C
Non-operating: -40°C ~ 85°C
Shock:
Operating: 1000G, 0.5ms
Non-operating: 1500G, 0.5ms
Vibration:
Operating: 3.08Grms (7 - 800Hz)
Non-operating: 20G (20 - 2000Hz)
Drop: 80cm height
Bending: 50N force

Certifications and Declarations: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL

Compliant: RoHS compliant

Feature Support
Hardware Based Power Loss Data Protection
Thermal throttling
End-to-End Data Path Protection
TCG Opal 2.0
