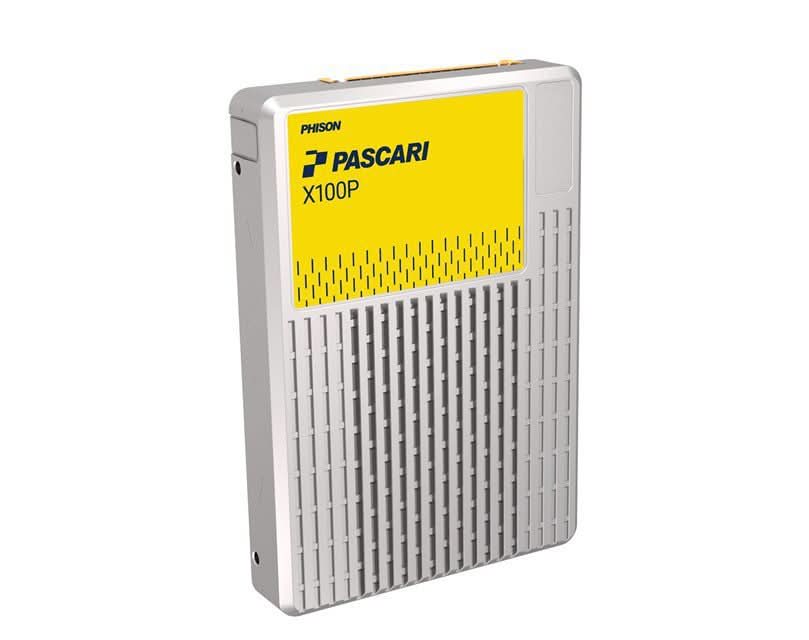

PHISON XX106H013T84P224T0900 Pascari X100P 3.84TB U.2 Dual Port PCIe Gen4x4 SED SSD
Overview
PHISON XX106H013T84P224T0900 Pascari X100P 3.84TB U.2 Dual Port PCIe Gen4x4 SED SSD
Specifications
Model Number: XX106H013T84P224T0900
Brand: PHISON
Alt Part Number(s): XX106H013T84P224T0900
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XX106H013T84P224T0900
Capacity 3.84TB
Form Factor U.2
Security SED
PCIe Interface PCIe Gen4x4
Port Configuration Dual Port x2 lanes
PCIe AER Advanced Error Reporting
Compliance PCI Express Base Specification Rev. 4.0, NVM Express Base Specification Rev. 1.4, NVM Express Management Interface Rev 1.1, PCI Express SFF-8639 Module Specification Revision 4.0 Version 1.0, SFF-TA-1001 r1.1
Sequential Read (512KB, QD=32, Job=1) 7400MB/s
Sequential Write (512KB, QD=32, Job=1) 6900MB/s
Random Read (4KB, QD=128, Jobs=8) 1,750K IOPS
Random Write (4KB, QD=128, Jobs=8) 195K IOPS
Power - 128K Sequential Read (Average RMS) 11W
Power - 128K Sequential Write (Average RMS) 18W
Power - 4KB Random Read (Average RMS) 13W
Power - 4KB Random Write (Average RMS) 15W
Power - 4KB 70/30 Random R/W (Average RMS) 15W
Idle Power (Average RMS) 5.6W
DWPD 1
TBW 7008TB
MTBF 2.5 million hours
UBER < 1 sector per 10^18 bits read
Operating Temperature 0°C – 70°C with specified airflow
Non-Operating Temperature -40°C – 85°C
Shock (Operating) 500G, 2ms
Shock (Non-Operating) 1000G, 0.5ms
Vibration (Operating) 2.17 Grms (200–2000Hz)
Vibration (Non-Operating) 16.3 Grms (10–2000Hz)
Drop 80cm height
Bending 50N
Certifications CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
RoHS Compliance Yes
LBAF 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
Namespaces 64
Dual Port Supported
Reservation Supported
Metadata Protection Supported
Thermal Throttling Supported
Power Loss Protection Supported
Hardware Encryption AES-XTS 256-bit
SMBus Support Yes
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
