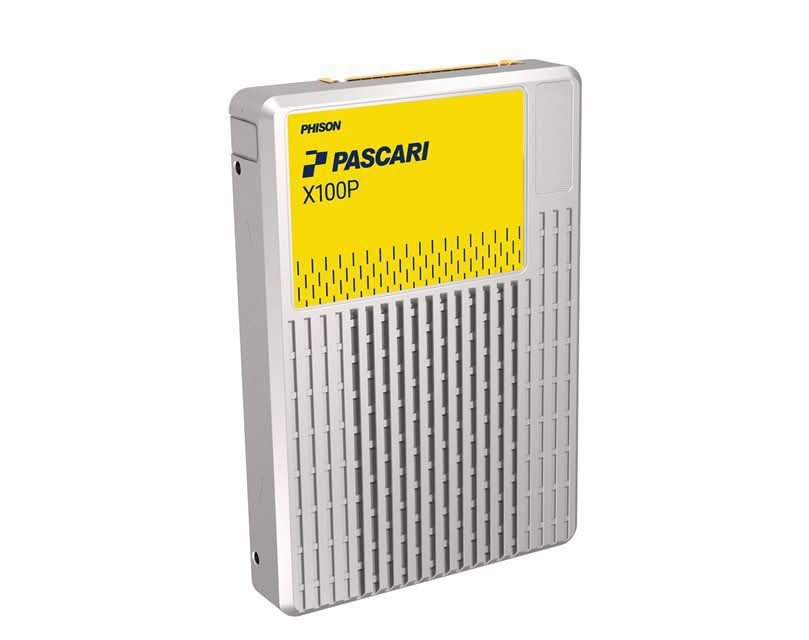

PHISON XX106H013T84P024T0900 Pascari X100P 3.84 TB U.2 Dual Port PCIe Gen4x4 Non-SED SSD
Overview
PHISON XX106H013T84P024T0900 Pascari X100P 3.84 TB U.2 Dual Port PCIe Gen4x4 Non-SED SSD
Specifications
Model Number: XX106H013T84P024T0900
Brand: PHISON
Alt Part Number(s): XX106H013T84P024T0900
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XX106H013T84P024T0900
Capacities: 3.84 TB
Security: Non-SED
Form Factor: U.2
PCIe Interface
PCIe Gen4x4
Dual Port x2 lanes
PCIe AER (Advanced Error Reporting)
Compliance
PCI Express Base Specification Rev. 4.0
NVM Express Base Specification Rev. 1.4
NVM Express Management Interface Rev. 1.1
PCI Express SFF-8639 Module Specification Revision 4.0, Version 1.0, SFF-TA-1001 r1.1
Performance
512KB Sequential Read/Write (QD=32, Job=1)(MB/s): 7,400 / 6,900
4KB Random Read/Write (QD=128, Jobs=8) (IOPS): 1,750K / 195K
Power Consumption
128K Sequential Read (Average RMS, W): 11
128K Sequential Write (Average RMS, W): 18
4KB Random Read (Average RMS, W): 13
4KB Random Write (Average RMS, W): 15
4KB 70/30 Random Read/Write (Average RMS, W): 15
Idle (Average RMS, W): 5.6
Endurance/Reliability
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read
DWPD: 1
TBW: 7008TB
Environmental Specifications
Temperature Range:
Operating: 0°C - 70°C with specified airflow
Non-operating: -40°C - 85°C
Shock:
Operating: 500G, 2ms
Non-operating: 1000G, 0.5ms
Vibration:
Operating: 2.17 Grms (200 - 2000Hz)
Non-operating: 16.3 Grms (10 - 2000Hz)
Drop: 80cm height
Bending: 50N
Certifications and Declarations: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Product Ecological Compliance: RoHS compliant
Feature Support
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
64 Namespaces
Dual Port
Reservation
Metadata Protection
Thermal throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
SMBus
