Overview

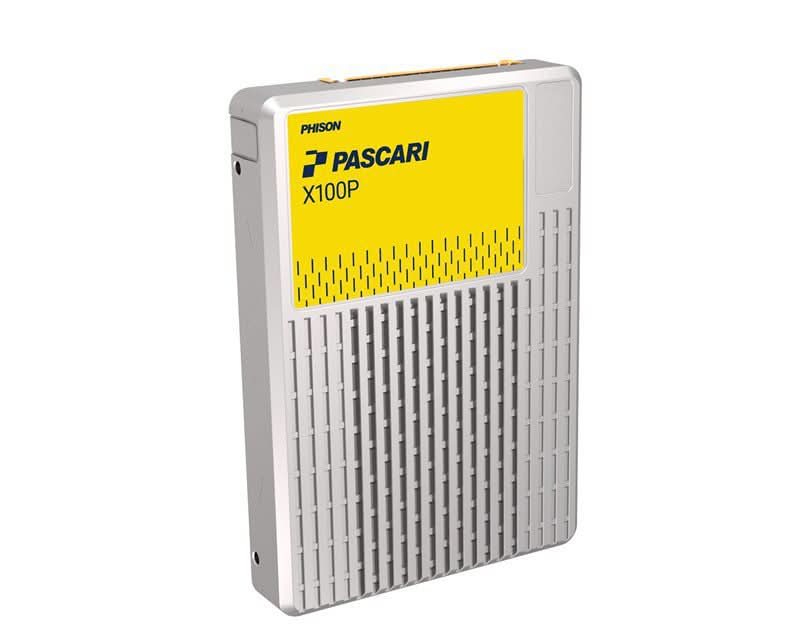

PHISON XX106H011T92P222T0400 Pascari X100P 1.92TB U.2 Dual Port PCIe Gen4x4 SED SSD

Specifications

Model Number:  XX106H011T92P222T0400

Brand:   PHISON

Alt Part Number(s):

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XX106H011T92P222T0400

Capacity 1.92TB

Form Factor U.2

Security SED

PCIe Interface PCIe Gen4x4

Port Configuration Dual Port x2 lanes

PCIe AER Advanced Error Reporting

Compliance PCI Express Base Specification Rev. 4.0, NVM Express Base Specification Rev. 1.4, NVM Express Management Interface Rev 1.1, PCI Express SFF-8639 Module Specification Revision 4.0 Version 1.0, SFF-TA-1001 r1.1

Sequential Read / Write (512KB, QD=32, Job=1) 7400MB/s / 3600MB/s

Random Read / Write (4KB, QD=128, Jobs=8) 1750K IOPS / 126K IOPS

Power - 128K Sequential Read / Write (Average RMS) 10W / 13W

Power - 4KB Random Read / Write (Average RMS) 12W / 12W

Power - 4KB 70/30 Random Read/Write (Average RMS) 12W

Idle Power (Average RMS) 5.4W

DWPD 1

TBW 3504TB

MTBF 2.5 million hours

UBER < 1 sector per 10^18 bits read

Operating Temperature 0°C – 70°C with specified airflow

Storage Temperature -40°C – 85°C

Shock Resistance 500G (Operating, 2ms), 1000G (Non-operating, 0.5ms)

Vibration Resistance 2.17 Grms (Operating, 200–2000Hz), 16.3 Grms (Non-operating, 10–2000Hz)

Drop Test 80cm height

Bending Resistance 50N

Certifications CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL

RoHS Compliance Yes

LBAF 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

Namespaces 64

Dual Port Supported

Reservation Supported

Metadata Protection Supported

Thermal Throttling Supported

Power Loss Protection Supported

Hardware Encryption AES-XTS 256-bit

SMBus Support Yes

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
