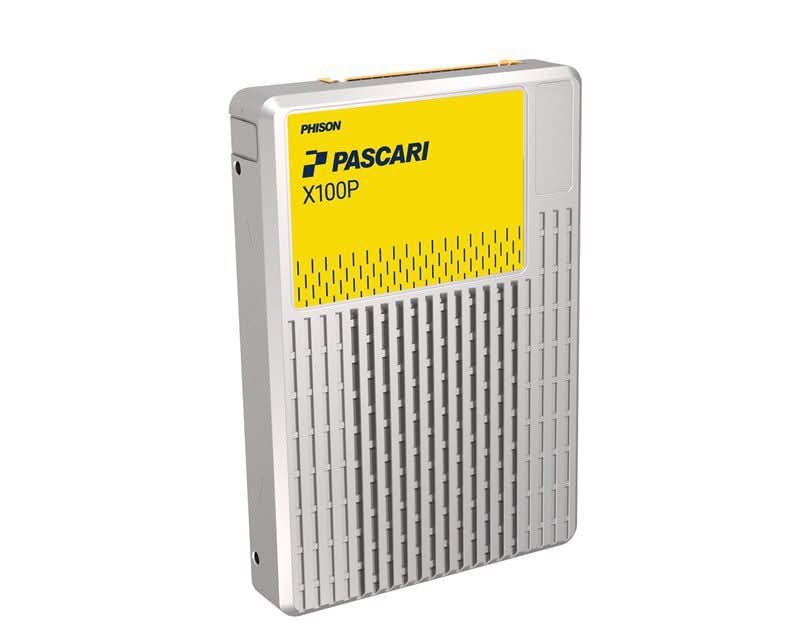

PHISON XX106H007T68P228T1900 Pascari X100P 7.68TB U.2 Dual Port PCIe Gen4x4 Opal SSD
Overview
PHISON XX106H007T68P228T1900 Pascari X100P 7.68TB U.2 Dual Port PCIe Gen4x4 Opal SSD
Specifications
Model Number: XX106H007T68P228T1900
Brand: PHISON
Alt Part Number(s): XX106H007T68P228T1900
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XX106H007T68P228T1900
Capacity 7.68TB
Form Factor U.2
Security Opal
PCIe Interface PCIe Gen4x4
Port Configuration Dual Port x2 lanes
PCIe AER Advanced Error Reporting
Maximum Sequential Read 7000MB/s
Maximum Sequential Write 6800MB/s
Maximum Random Read 1600K IOPS
Maximum Random Write 180K IOPS
Sustained Random Read/Write Latency 100/15 µs (QD=1, Workers=1); 110/300 µs (QD=32, Workers=1); 450/3800 µs (QD=64, Workers=8)
IOPS Consistency 95%
QoS (99%) Read/Write 100/12 µs (QD=1, Workers=1); 130/200 µs (QD=32, Workers=1); 600/3200 µs (QD=64, Workers=8)
Random Read Power (Typical) 15.7W
Random Write Power (Typical) 17.4W
Sequential Read Power (Typical) 11.6W
Sequential Write Power (Typical) 19.1W
Inrush Current 1.5A
Idle Power 5.75W
DWPD 1
TBW 14,016TB
LBAF 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
MTBF 2,500,000 hours
UBER < 1 sector per 10^18 bits read
ECC Yes
Wear Leveling Static and Dynamic
Bad Block Management Yes
Deallocate (TRIM) Command Supported
SMART Supported
Over-Provisioning Supported
Firmware Upgrade Supported
Operating Temperature 0°C – 70°C with specified airflow
Storage Temperature -40°C – 85°C
RoHS Compliance Yes
Namespaces Supported
Dual Port Supported
Reservation Supported
Metadata Protection Supported
Thermal Throttling Supported
Power Loss Protection Supported
Hardware Encryption AES-XTS 256-bit
SMBus Support Yes
NVMe-MI Support Yes
Compliance PCIe Express Base 4.0, NVMe 1.4, NVMe Management Interface Rev 1.1
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
