PHISON Pascari X100P XX106H0030T7P0132T700 30.72TB U.2 Dual Port PCIe Gen4x4 Non-Opal SSD

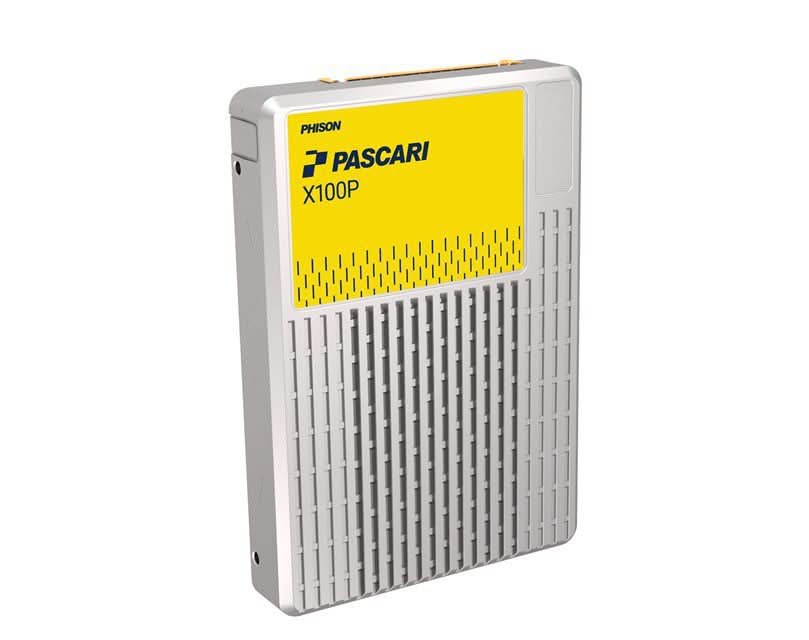

Product image 1

PHISON Pascari X100P XX106H0030T7P0132T700 30.72TB U.2 Dual Port PCIe Gen4x4 Non-Opal SSD

Overview

PHISON Pascari X100P XX106H0030T7P0132T700 30.72TB U.2 Dual Port PCIe Gen4x4 Non-Opal SSD

Specifications

Model Number:  XX106H0030T7P0132T700

Brand:   PHISON

Alt Part Number(s):    XX106H0030T7P0132T700

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XX106H0030T7P0132T700

Capacities: 30.72 TB

Security: Non-Opal

Form Factor: U.2

PCIe Interface

PCIe Gen4x4

Dual Port: x2 lanes

PCIe AER: Advanced Error Reporting

128KB Sequential Read/Write (QD=32, Workers=1): 7000 MB/s / 6000 MB/s

4K Sustained Random Read/Write (QD=64, Workers=8): 1600K IOPS / 180K IOPS

4K Sustained Random Read/Write Latency (µs): 90/15 (QD=1, Workers=1); 100/200 (QD=32, Workers=1); 320/3150 (QD=64, Workers=8)

IOPS Consistency: 95%

4KB Sustained Random Read/Write QoS (99%) (µs): 100/12 (QD=1, Workers=1); 120/200 (QD=32, Workers=1); 600/3200 (QD=64, Workers=8)

Random Read Power (Typ): 18.5 W

Random Write Power (Typ): 20.6 W

Sequential Read Power (Typ): 13.7 W

Sequential Write Power (Typ): 20.1 W

Inrush Current: 1.5A

Idle Power (Typ): 8.16 W

DWPD: 1 DWPD

TBW: 56064 TB

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

MTBF: 2,500,000 hours

UBER: < 1 sector per 10^18 bits read

ECC

Static and Dynamic Wear Leveling

Bad Block Management

Deallocate (TRIM) Command

SMART

Over-Provision

Firmware Upgrade

Operation Temperature: 0 °C - 70 °C with specified airflow

Storage Temperature: -40 °C - 85 °C

RoHS Compliant

Namespace

Dual Port

Reservation

Metadata Protection

Thermal Throttling

Power Loss Protection

Hardware AES-XTS 256-bit Encryption

Support SMBus

Support NVMe-MI (Management Interface)

Data Retention: 3 months

Compliance: PCIe Express Base 4.0

NVMe: 1.4

NVMe Management Interface: Rev 1.1

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

Overview

PHISON Pascari X100P XX106H0030T7P0132T700 30.72TB U.2 Dual Port PCIe Gen4x4 Non-Opal SSD

Specifications

Model Number:  XX106H0030T7P0132T700

Brand:   PHISON

Alt Part Number(s):    XX106H0030T7P0132T700

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XX106H0030T7P0132T700

Capacities: 30.72 TB

Security: Non-Opal

Form Factor: U.2

PCIe Interface

PCIe Gen4x4

Dual Port: x2 lanes

PCIe AER: Advanced Error Reporting

128KB Sequential Read/Write (QD=32, Workers=1): 7000 MB/s / 6000 MB/s

4K Sustained Random Read/Write (QD=64, Workers=8): 1600K IOPS / 180K IOPS

4K Sustained Random Read/Write Latency (µs): 90/15 (QD=1, Workers=1); 100/200 (QD=32, Workers=1); 320/3150 (QD=64, Workers=8)

IOPS Consistency: 95%

4KB Sustained Random Read/Write QoS (99%) (µs): 100/12 (QD=1, Workers=1); 120/200 (QD=32, Workers=1); 600/3200 (QD=64, Workers=8)

Random Read Power (Typ): 18.5 W

Random Write Power (Typ): 20.6 W

Sequential Read Power (Typ): 13.7 W

Sequential Write Power (Typ): 20.1 W

Inrush Current: 1.5A

Idle Power (Typ): 8.16 W

DWPD: 1 DWPD

TBW: 56064 TB

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

MTBF: 2,500,000 hours

UBER: < 1 sector per 10^18 bits read

ECC

Static and Dynamic Wear Leveling

Bad Block Management

Deallocate (TRIM) Command

SMART

Over-Provision

Firmware Upgrade

Operation Temperature: 0 °C - 70 °C with specified airflow

Storage Temperature: -40 °C - 85 °C

RoHS Compliant

Namespace

Dual Port

Reservation

Metadata Protection

Thermal Throttling

Power Loss Protection

Hardware AES-XTS 256-bit Encryption

Support SMBus

Support NVMe-MI (Management Interface)

Data Retention: 3 months

Compliance: PCIe Express Base 4.0

NVMe: 1.4

NVMe Management Interface: Rev 1.1

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.

$5,321.10

Original: $17,737.00

-70%
PHISON Pascari X100P XX106H0030T7P0132T700 30.72TB U.2 Dual Port PCIe Gen4x4 Non-Opal SSD—

$17,737.00

$5,321.10
