Overview

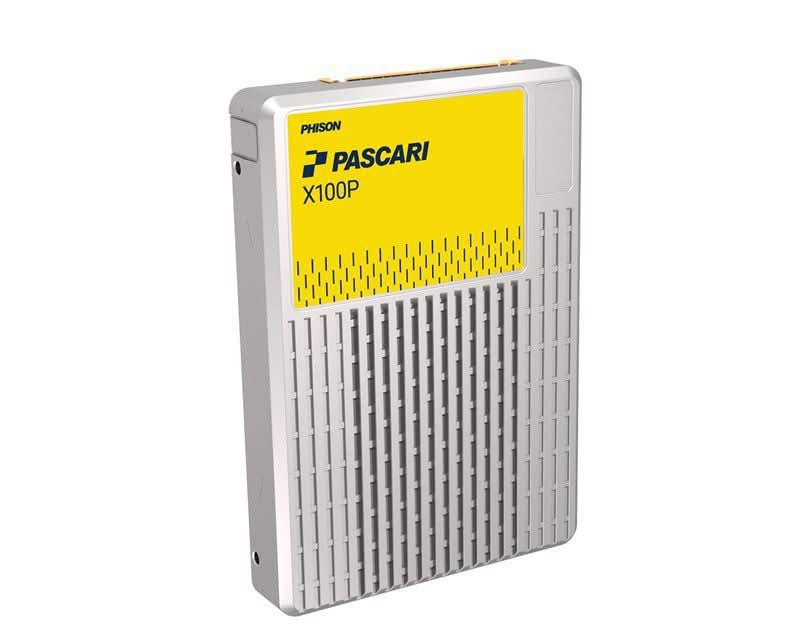

 PHISON XX106H0015T3P0116T300 Pascari X100P 15.36TB U.2 Dual Port PCIe Gen4x4 Non-Opal SSD

Specifications

Model Number:  XX106H0015T3P0116T300

Brand:   PHISON

Alt Part Number(s):    XX106H0015T3P0116T300

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XX106H0015T3P0116T300

Capacities: 15.36 TB

Form Factor: U.2

Security: Non-Opal

PCIe Interface:
PCIe Gen4x4
Dual Port x2 lanes
PCIe AER (Advanced Error Reporting)

Maximum Sequential Read / Write: 7000 MB/s / 6800 MB/s

Maximum Random Read / Write: 1600K IOPS / 180K IOPS

Sustained Random Read / Write Latency (µs):
100 / 15 (QD=1, Workers=1)
110 / 300 (QD=32, Workers=1)
450 / 3800 (QD=64, Workers=8)

IOPS Consistency: 95%

QoS (99%) Read / Write (µs):
100 / 12 (QD=1, Workers=1)
120 / 200 (QD=32, Workers=1)
600 / 3000 (QD=64, Workers=8)

Power Consumption
Random Read / Write (Typ): 16.2 W / 19.6 W
Sequential Read / Write (Typ): 12.3 W / 20.1 W
Inrush Current: 1.5A
Idle Power (Typ): 7.32 W

DWPD: 1 DWPD

TBW: 28032 TB

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

MTBF: 2,500,000 hours

UBER: < 1 sector per 10^18 bits read

Advanced Flash Management
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade

Temperature Range
Operation: 0 °C – 70 °C with specified airflow
Storage: -40 °C – 85 °C

RoHS: Compliant

Enterprise Features Support List
Namespace
Dual Port
Reservation
Metadata Protection
Thermal Throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption

Support SMBus

Support NVMe-MI (Management Interface)

Data Retention: 3 months

Compliance
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1
