Overview

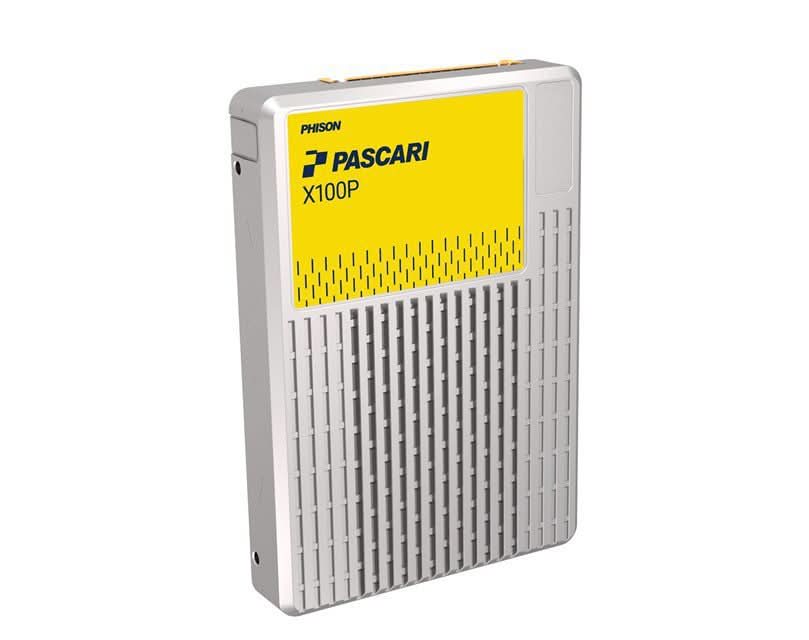

 PHISON XP106H013T84P224T0900 Pascari X100P 3.84TB U.2 Single Port PCIe Gen4x4 SED SSD

Specifications

Model Number:  XP106H013T84P224T0900

Brand:   PHISON

Alt Part Number(s):    XP106H013T84P224T0900

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XP106H013T84P224T0900

Capacity: 3.84TB

Security: SED

Form Factor: U.2

Interface: PCIe Gen4x4 (Single Port x4 lanes)

NVMe: 1.4

Sequential Read (MB/s): 7,400

Sequential Write (MB/s): 6,900

4K Random Read (IOPS): 1,750K

4K Random Write (IOPS): 195K

Power - Sequential Read (W): 11

Power - Sequential Write (W): 18

Power - Random Read (W): 13

Power - Random Write (W): 15

Power - 70/30 Read/Write (W): 15

Idle Power (W): 5.6

DWPD: 1

TBW: 7,008 TB

MTBF (million hours): 2.5

UBER: < 1 sector per 10^18 bits read

Operating Temp (°C): 0 - 70

Non-Operating Temp (°C): -40 - 85

Shock - Operating: 500G, 2ms

Shock - Non-Operating: 1000G, 0.5ms

Vibration - Operating: 2.17 Grms (200 - 2000Hz)

Vibration - Non-Operating: 16.3 Grms (10 - 2000 Hz)

Drop: 80cm

Bending: 50N

Encryption: AES-XTS 256-bit

Other Features:

• LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

• 64 Namespaces

• Metadata Protection

• Thermal Throttling

• Power Loss Protection

• Reservation Support

• SMBus

Compliance: PCIe 4.0, NVMe 1.4, RoHS

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
