Overview

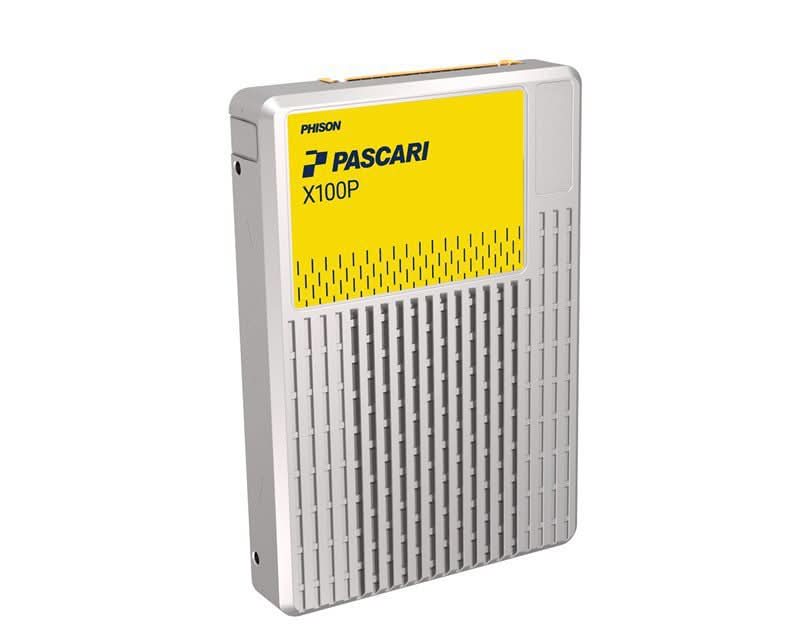

PHISON Pascari X100P XP106H003T84P224T0900 3.84TB U.2 Single Port PCIe Gen4x4 Opal SSD

Specifications

Model Number:  XP106H003T84P224T0900

Brand:   PHISON

Alt Part Number(s):    XP106H003T84P224T0900

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XP106H003T84P224T0900

Capacity: 3.84TB

Form Factor: U.2

Security: Opal

Interface: PCIe Gen4x4 (Single Port x4 lanes)

NVMe: 1.4

Sequential Read (MB/s): 7,000

Sequential Write (MB/s): 6,700

4K Random Read (IOPS): 1,600K

4K Random Write (IOPS): 170K

Read Latency (µs): 100 (QD=1, Workers=1); 110 (QD=32); 450 (QD=64, Workers=8)

Write Latency (µs): 15 (QD=1, Workers=1); 300 (QD=32); 4000 (QD=64, Workers=8)

IOPS Consistency: 95%

QoS Read (µs, 99%): 100 (QD=1); 140 (QD=32); 600 (QD=64)

QoS Write (µs, 99%): 12 (QD=1); 200 (QD=32); 3200 (QD=64)

Power - Random Read/Write (W): 13.3 / 15.5

Power - Sequential Read/Write (W): 10.6 / 17.9

Idle Power (W): 5.8

Inrush Current: 1.5A

DWPD: 1

TBW: 7.01TB

MTBF (million hours): 2.5

UBER: < 1 sector per 10^18 bits read

Operating Temp (°C): 0 - 70

Non-Operating Temp (°C): -40 - 85

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

Data Retention: 3 months

Encryption: AES-XTS 256-bit

Other Features: ECC, Wear Leveling, Bad Block Management, TRIM, SMART, Over-Provision, Firmware Upgrade, Metadata Protection, Thermal Throttling, Power Loss Protection, Reservation Support, SMBus, NVMe-MI

Compliance: PCIe 4.0, NVMe 1.4, RoHS
