Overview

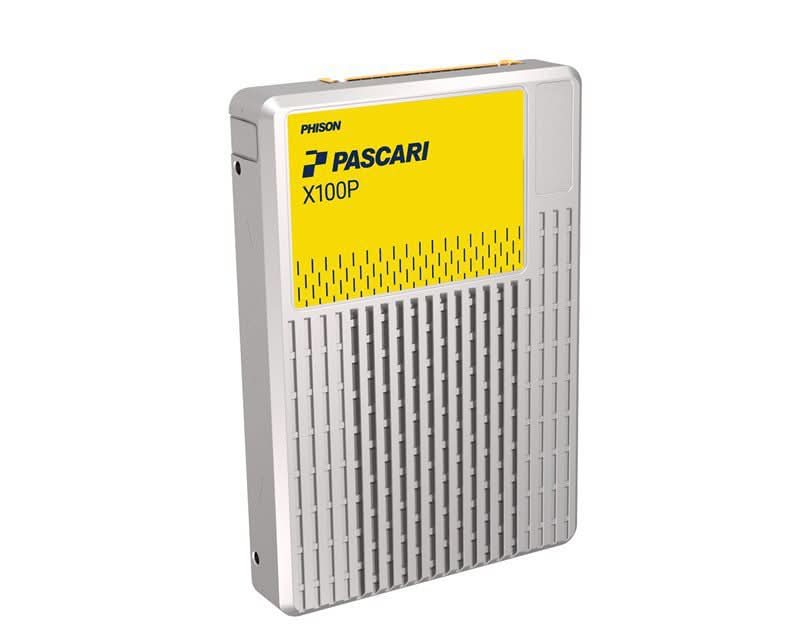

 PHISON XP106H0015T3P2116T300 Pascari X100P 15.36TB U.2 Single Port PCIe Gen4x4 Opal SSD

Specifications

Model Number:  XP106H0015T3P2116T300

Brand:   PHISON

Alt Part Number(s):    XP106H0015T3P2116T300

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XP106H0015T3P2116T300

Capacity 15.36TB

Form Factor U.2

Security Opal

PCIe Interface PCIe Gen4x4

Port Configuration Single Port x4 lanes

PCIe AER Advanced Error Reporting

Maximum Sequential Read / Write 7000MB/s / 6800MB/s

Maximum Random Read / Write 1600K IOPS / 180K IOPS

Sustained Random Read / Write Latency (µs) 100/15 (QD=1, Workers=1); 110/300 (QD=32, Workers=1); 450/3800 (QD=64, Workers=8)

IOPS Consistency 95%

QoS (99%) Read / Write (µs) 100/12 (QD=1, Workers=1); 120/200 (QD=32, Workers=1); 600/3000 (QD=64, Workers=8)

Power Consumption - Random Read / Write (W) 16.2 / 19.6

Power Consumption - Sequential Read / Write (W) 12.3 / 20.1

Inrush Current 1.5A

Idle Power (W) 7.32

DWPD 1

TBW 28032TB

LBAF 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

MTBF 2,500,000 hours

UBER < 1 sector per 10^18 bits read

Advanced Flash Management ECC, Static and Dynamic Wear Leveling, Bad Block Management, Deallocate (TRIM) Command, SMART, Over-Provision, Firmware Upgrade

Operating Temperature (°C) 0 - 70 (with specified airflow)

Storage Temperature (°C) -40 - 85

RoHS Compliance Yes

Enterprise Features Namespace, Single Port, Reservation, Metadata Protection, Thermal Throttling, Power Loss Protection, Hardware AES-XTS 256-bit Encryption

SMBus Support Yes

NVMe-MI Support Yes

Data Retention 3 months

Compliance PCIe Express Base 4.0, NVMe 1.4, NVMe Management Interface Rev 1.1
