Overview

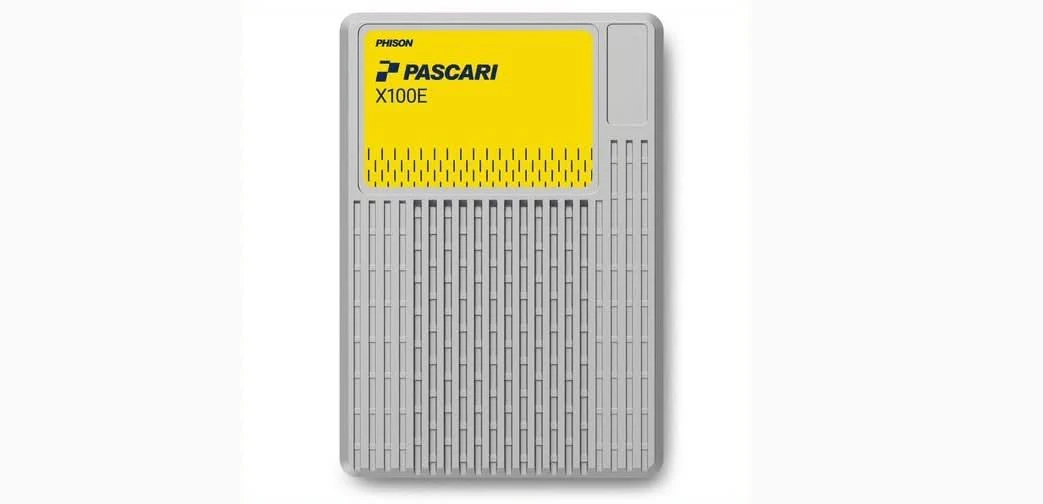

 PHISON XX106H003T20E224T0900 Pascari X100E 3.2TB U.2 Dual Port PCIe Gen4x4 Opal SSD

Specifications

Model Number:  XX106H003T20E224T0900

Brand:   PHISON

Alt Part Number(s):    XX106H003T20E224T0900

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XX106H003T20E224T0900

Capacities: 3.2TB

Security: Opal

Form Factor: U.2

Interface: PCIe Gen4x4

Dual Port: 2 lanes

AER: PCIe Advanced Error Reporting

Performance
Sequential Read/Write (128KB, QD=32): 7,000 / 6,700 MB/s
Random Read/Write (4K, QD=64): 1,600K / 430K IOPS

Latency
QD=1: 100 / 15 µs
QD=32: 110 / 120 µs
QD=64: 450 / 1600 µs
IOPS Consistency: 95%

Quality of Service (99%)
QD=1: 100 / 12 µs
QD=32: 140 / 100 µs
QD=64: 600 / 2000 µs

Power Consumption
Random Read: 13.8W
Random Write: 16.4W
Sequential Read: 11.0W
Sequential Write: 18.3W

Idle: 5.83W

Inrush Current: 1.5A

DWPD: 3

TBW: 17.52TB

MTBF: 2,500,000 hours

UBER: < 1 sector per 10^18 bits read

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

Flash Management
ECC
Wear Leveling: Static and Dynamic
Bad Block Management
TRIM Support
SMART Support
Over-Provisioning
Firmware Upgradeable

Temperature
Operating: 0 °C – 70 °C (with specified airflow)
Storage: -40 °C – 85 °C

RoHS Compliant

Enterprise Features
Namespace Support
Dual Port Support
Reservation Support
Metadata Protection
Thermal Throttling
Power Loss Protection

Encryption: AES-XTS 256-bit

SMBus Support

NVMe-MI Support

Data Retention: 3 months

Compliance: PCIe 4.0

Compliance: NVMe 1.4

Compliance: NVMe-MI Rev 1.1
