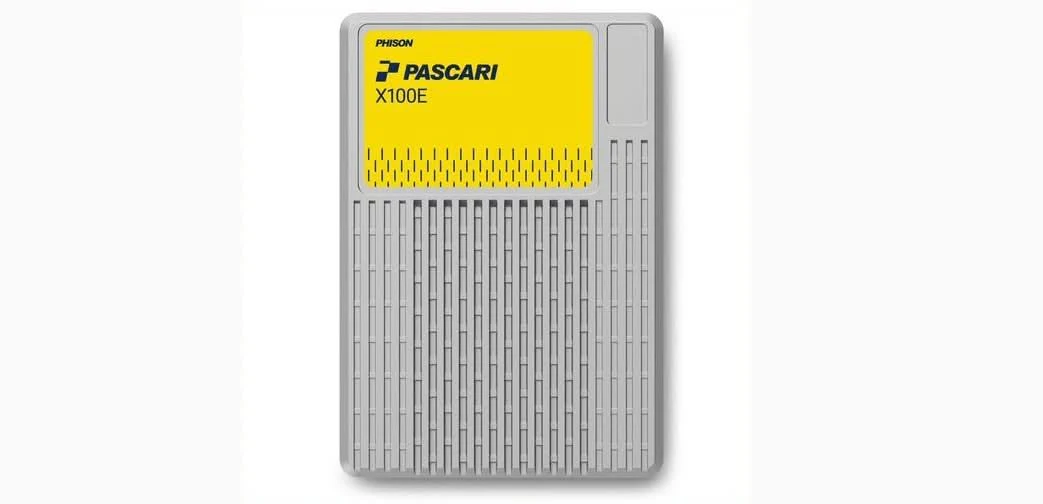

 PHISON XX106H0025T6E2132T700 Pascari X100E 25.6TB U.2 Dual Port PCIe Gen4x4 Opal SSD

Specifications

Model Number:  XX106H0025T6E2132T700

Brand:   PHISON

Alt Part Number(s):    XX106H0025T6E2132T700

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XX106H0025T6E2132T700

Capacities: 25.6TB

Security: Opal

Form Factor: U.2

PCIe Interface

PCIe: Gen4x4

Dual Port: x2 lanes

PCIe AER: Advanced Error Reporting

Performance
128KB Sequential Read/Write (QD=32, Workers=1)(MB/s): 7,000 / 6,000
4K Sustained Random Read/Write (QD=64, Workers=8)(IOPS): 1,600K / 450K
4K Sustained Random Read/Write Latency (µs): 90 / 15 (QD=1, Workers=1); 100 / 90 (QD=32, Workers=1); 320 / 1250 (QD=64, Workers=8)
IOPS Consistency: 95%
4KB Sustained Random Read/Write Quality of Service (QoS=99%)(µs): 100 / 12 (QD=1, Workers=1); 120 / 110 (QD=32, Workers=1); 600 / 1600 (QD=64, Workers=8)

Power Consumption
Random Read (Typ., W): 18.5
Random Write (Typ., W): 20.4
Sequential Read (Typ., W): 13.8
Sequential Write (Typ., W): 20.3
Inrush Current: 1.5A
Idle (Typ., W): 8.46

DWPD: 3DWPD

TBW: 140.16TB

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

MTBF: 2,500,000 hours

UBER (Uncorrectable Bit Error Rates): < 1 sector per 10^18 bits Read

Advanced Flash Management
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade

Temperature Range
Operation: 0 °C - 70 °C with specified airflow
Storage: -40 °C - 85 °C

RoHS Compliant

Enterprise Features Support List
Namespace
Dual Port
Reservation
Metadata Protection Thermal Throttling
Power Loss Protection

Hardware AES-XTS 256-bit Encryption

Support SMBus

Support NVMe-MI (Management Interface)

Data Retention: 3 months

Compliance: PCIe Express Base 4.0

Compliance: NVMe 1.4

Compliance: NVMe Management Interface Rev 1.1
