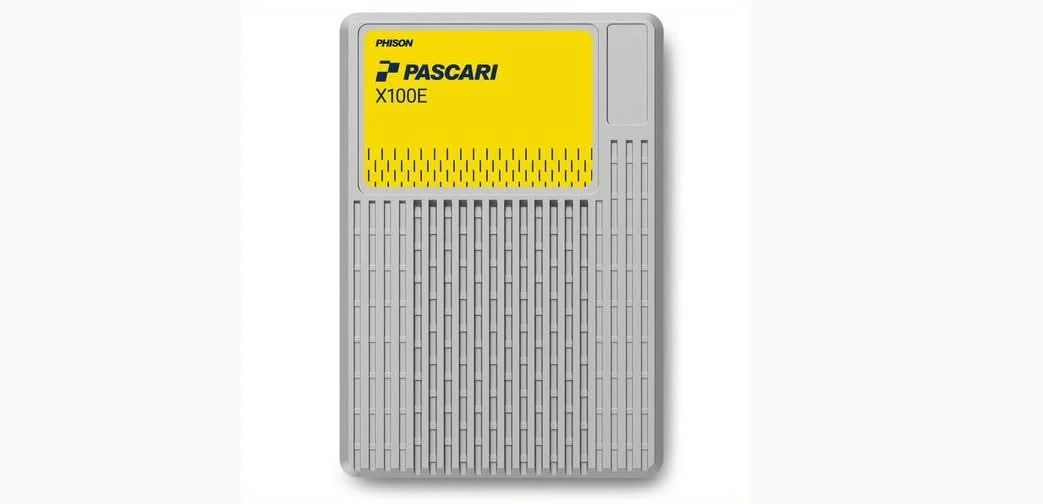

PHISON XX106H001T60E222T0400 Pascari X100E 1.6TB U.2 Dual Port PCIe Gen4x4 Opal SSD
Overview
PHISON XX106H001T60E222T0400 Pascari X100E 1.6TB U.2 Dual Port PCIe Gen4x4 Opal SSD
Specifications
Model Number: XX106H001T60E222T0400
Brand: PHISON
Alt Part Number(s): XX106H001T60E222T0400
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XX106H001T60E222T0400
Capacities: 1.6TB
Security: Opal
Form Factor: U.2
PCIe Interface
PCIe: Gen4x4
Dual Port: x2 lanes
PCIe AER: Advanced Error Reporting
Performance
128KB Sequential Read/Write (QD=32, Workers=1)(MB/s): 7,000 / 3,500
4K Sustained Random Read/Write (QD=64, Workers=8)(IOPS): 1,600K / 280K
4K Sustained Random Read/Write Latency (µs): 110 / 15 (QD=1, Workers=1); 120 / 160 (QD=32, Workers=1); 450 / 2200 (QD=64, Workers=8)
IOPS Consistency: 95%
4KB Sustained Random Read/Write Quality of Service (QoS=99%)(µs): 120 / 12 (QD=1, Workers=1); 160 / 130 (QD=32, Workers=1); 1000 / 2000 (QD=64, Workers=8)
Power Consumption
Random Read (Typ., W): 12.8
Random Write (Typ., W): 12.5
Sequential Read (Typ., W): 10.4
Sequential Write (Typ., W): 13.3
Inrush Current: 1.5A
Idle (Typ., W): 5.51
DWPD: 3DWPD
TBW: 8.76TB
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
MTBF: 2,500,000 hours
UBER (Uncorrectable Bit Error Rates): < 1 sector per 10^18 bits Read
Advanced Flash Management
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade
Temperature Range
Operation: 0 °C - 70 °C with specified airflow
Storage: -40 °C - 85 °C
RoHS compliant
Enterprise Features Support List
Namespace
Dual Port
Reservation
Metadata Protection Thermal throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
Support SMBus
Support NVMe-MI (Management Interface)
Data Retention: 3 months
Compliance
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
Overview
PHISON XX106H001T60E222T0400 Pascari X100E 1.6TB U.2 Dual Port PCIe Gen4x4 Opal SSD
Specifications
Model Number: XX106H001T60E222T0400
Brand: PHISON
Alt Part Number(s): XX106H001T60E222T0400
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XX106H001T60E222T0400
Capacities: 1.6TB
Security: Opal
Form Factor: U.2
PCIe Interface
PCIe: Gen4x4
Dual Port: x2 lanes
PCIe AER: Advanced Error Reporting
Performance
128KB Sequential Read/Write (QD=32, Workers=1)(MB/s): 7,000 / 3,500
4K Sustained Random Read/Write (QD=64, Workers=8)(IOPS): 1,600K / 280K
4K Sustained Random Read/Write Latency (µs): 110 / 15 (QD=1, Workers=1); 120 / 160 (QD=32, Workers=1); 450 / 2200 (QD=64, Workers=8)
IOPS Consistency: 95%
4KB Sustained Random Read/Write Quality of Service (QoS=99%)(µs): 120 / 12 (QD=1, Workers=1); 160 / 130 (QD=32, Workers=1); 1000 / 2000 (QD=64, Workers=8)
Power Consumption
Random Read (Typ., W): 12.8
Random Write (Typ., W): 12.5
Sequential Read (Typ., W): 10.4
Sequential Write (Typ., W): 13.3
Inrush Current: 1.5A
Idle (Typ., W): 5.51
DWPD: 3DWPD
TBW: 8.76TB
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
MTBF: 2,500,000 hours
UBER (Uncorrectable Bit Error Rates): < 1 sector per 10^18 bits Read
Advanced Flash Management
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade
Temperature Range
Operation: 0 °C - 70 °C with specified airflow
Storage: -40 °C - 85 °C
RoHS compliant
Enterprise Features Support List
Namespace
Dual Port
Reservation
Metadata Protection Thermal throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
Support SMBus
Support NVMe-MI (Management Interface)
Data Retention: 3 months
Compliance
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
Original: $1,314.00
-70%$1,314.00
$394.20Description
