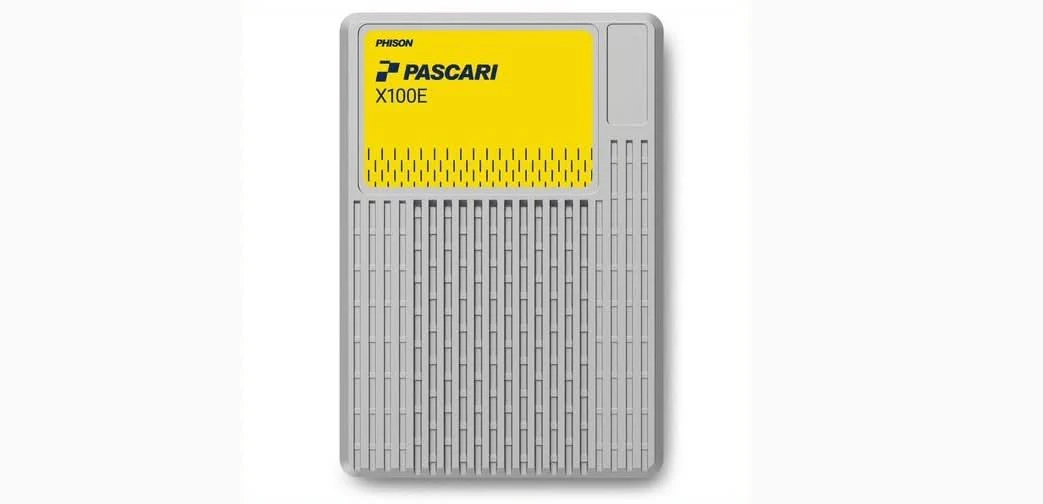

PHISON XX106H0012T8E0116T300 Pascari X100E 12.8TB U.2 Dual Port PCIe Gen4x4 Non-Opal SSD
Overview
PHISON XX106H0012T8E0116T300 Pascari X100E 12.8TB U.2 Dual Port PCIe Gen4x4 Non-Opal SSD
Specifications
Model Number: XX106H0012T8E0116T300
Brand: PHISON
Alt Part Number(s): XX106H0012T8E0116T300
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XX106H0012T8E0116T300
Capacities: 12.8TB
Security: Non-Opal
Form Factor: U.2
PCIe Interface
PCIe Gen4x4
Dual Port x2 lanes
PCIe AER (Advanced Error Reporting)
Performance
128KB Sequential Read/Write (QD=32, Workers=1)(MB/s): 7,000 / 6,800
4K Sustained Random Read/Write (QD=64, Workers=8)(IOPS): 1,600K / 480K
Latency 4K Sustained Random Read/Write (µs):
100 / 15 (QD=1, Workers=1)
110 / 150 (QD=32, Workers=1)
450 / 1900 (QD=64, Workers=8)
IOPS Consistency: 95%
4KB Sustained Random Read/Write Quality of Service (QoS=99%)(µs):
100 / 12 (QD=1, Workers=1)
120 / 80 (QD=32, Workers=1)
600 / 1600 (QD=64, Workers=8)
Power Consumption
Random Read (Typ., W): 16.5
Random Write (Typ., W): 20.2
Sequential Read (Typ., W): 12.6
Sequential Write (Typ., W): 20.8
Inrush Current: 1.5A
Idle (Typ., W): 7.43
Endurance/Reliability
DWPD: 3DWPD
TBW: 70080TB
MTBF: 2,500,000 hours
UBER (Uncorrectable Bit Error Rate): < 1 sector per 10^18 bits read
Advanced Flash Management
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade
Temperature Range
Operation: 0°C – 70°C with specified airflow
Storage: -40°C – 85°C
Compliance
RoHS compliant
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1
Enterprise Features Support List
Namespace
Dual Port
Reservation
Metadata Protection
Thermal throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
Support
SMBus
NVMe-MI (Management Interface)
Data Retention: 3 months
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
