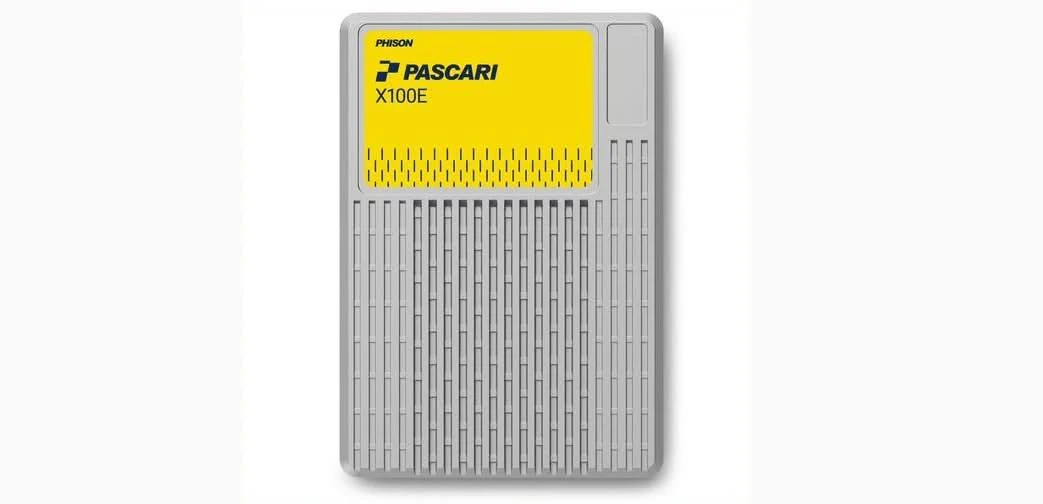

 PHISON XP106H016T40E228T1900 Pascari X100E 6.4TB U.2 Single Port PCIe Gen4x4 SED SSD

Specifications

Model Number:  XP106H016T40E228T1900

Brand:   PHISON

Alt Part Number(s):    XP106H016T40E228T1900

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XP106H016T40E228T1900

Capacities: 6.4 TB

Security: SED

Form Factor: U.2

PCIe Interface
PCIe Gen4x4
Single Port x4 lanes
PCIe AER (Advanced Error Reporting)

Compliance
PCI Express Base Specification Rev. 4.0
NVM Express Base Specification Rev. 1.4
NVM Express Management Interface Rev 1.1
PCI Express SFF-8639 Module Specification Revision 4.0, Version 1.0, SFF-TA-1001 r1.1

512KB Sequential Read / Write (QD=32, Job=1): 7400 MB/s / 7000 MB/s

4KB Random Read / Write (QD=128, Jobs=8): 1750K IOPS / 460K IOPS

Power Consumption
128K Sequential Read (Average RMS): 12 W
128K Sequential Write (Average RMS): 19 W
4KB Random Read (Average RMS): 16 W
4KB Random Write (Average RMS): 18 W
4KB 70/30 Random Read/Write (Average RMS): 17 W
Idle (Average RMS): 5.9 W

MTBF: 2.5 million hours

UBER: < 1 sector per 10^18 bits read

DWPD: 3

TBW: 35040 TB

Temperature Range
Operating: 0 °C – 70 °C with specified airflow
Non-operating: -40 °C – 85 °C

Shock
Operating: 500G, 2ms
Non-operating: 1000G, 0.5ms

Vibration
Operating: 2.17 Grms (200 – 2000 Hz)
Non-operating: 16.3 Grms (10 – 2000 Hz)

Drop: 80 cm height

Bending: 50N

Certifications and Declarations: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL

Product Ecological Compliance: RoHS compliant

Feature Support
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
64 Namespaces
Single Port
Reservation
Metadata Protection
Thermal Throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
SMBus
