Overview

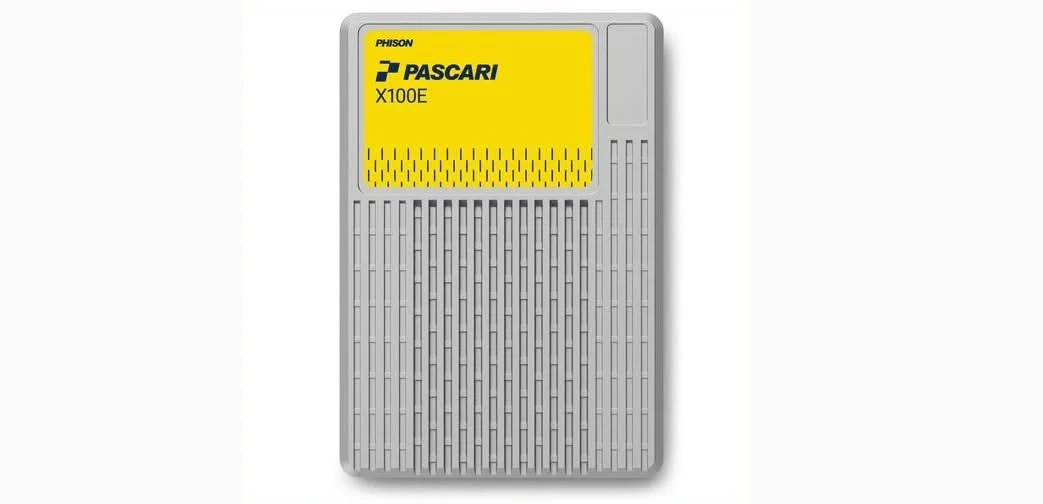

 PHISON XP106H001T60E022T0400 Pascari X100E 1.6TB U.2 Single Port PCIe Gen4x4 Non-Opal SSD

Specifications

Model Number:  XP106H001T60E022T0400

Brand:   PHISON

Alt Part Number(s):    XP106H001T60E022T0400

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XP106H001T60E022T0400

Capacities: 1.6TB

Security: Non-Opal

Form Factor: U.2

PCIe Interface
PCIe Gen4x4
Single Port x4 lanes
PCIe AER (Advanced Error Reporting)

Performance
128KB Sequential Read/Write (QD=32, Workers=1)(MB/s): 7,000 / 3,500
4K Sustained Random Read/Write (QD=64, Workers=8)(IOPS): 1,600K / 280K
4K Sustained Random Read/Write Latency(µs): 110 / 15 (QD=1, Workers=1); 120 / 160 (QD=32, Workers=1); 450 / 2200 (QD=64, Workers=8)
IOPS Consistency: 95%
4KB Sustained Random Read/Write Quality of Service (QoS=99%)(µs): 120 / 12 (QD=1, Workers=1); 160 / 130 (QD=32, Workers=1); 1000 / 2000 (QD=64, Workers=8)

Power Consumption
Random Read (Typ., W): 12.8
Random Write (Typ., W): 12.5
Sequential Read (Typ., W): 10.4
Sequential Write (Typ., W): 13.3
Inrush Current: 1.5A
Idle (Typ., W): 5.51

DWPD: 3DWPD

TBW: 8.76TB

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

MTBF: 2,500,000 hours

UBER (Uncorrectable Bit Error Rates): < 1 sector per 10^18 bits Read

Advanced Flash Management
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade

Temperature Range
Operation: 0 °C - 70 °C with specified airflow
Storage: -40 °C - 85 °C

RoHS compliant

Enterprise Features Support List
Namespace
Single Port
Reservation
Metadata Protection Thermal throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption

Support SMBus

Support NVMe-MI (Management Interface)

Data Retention: 3 months

Compliance
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1
