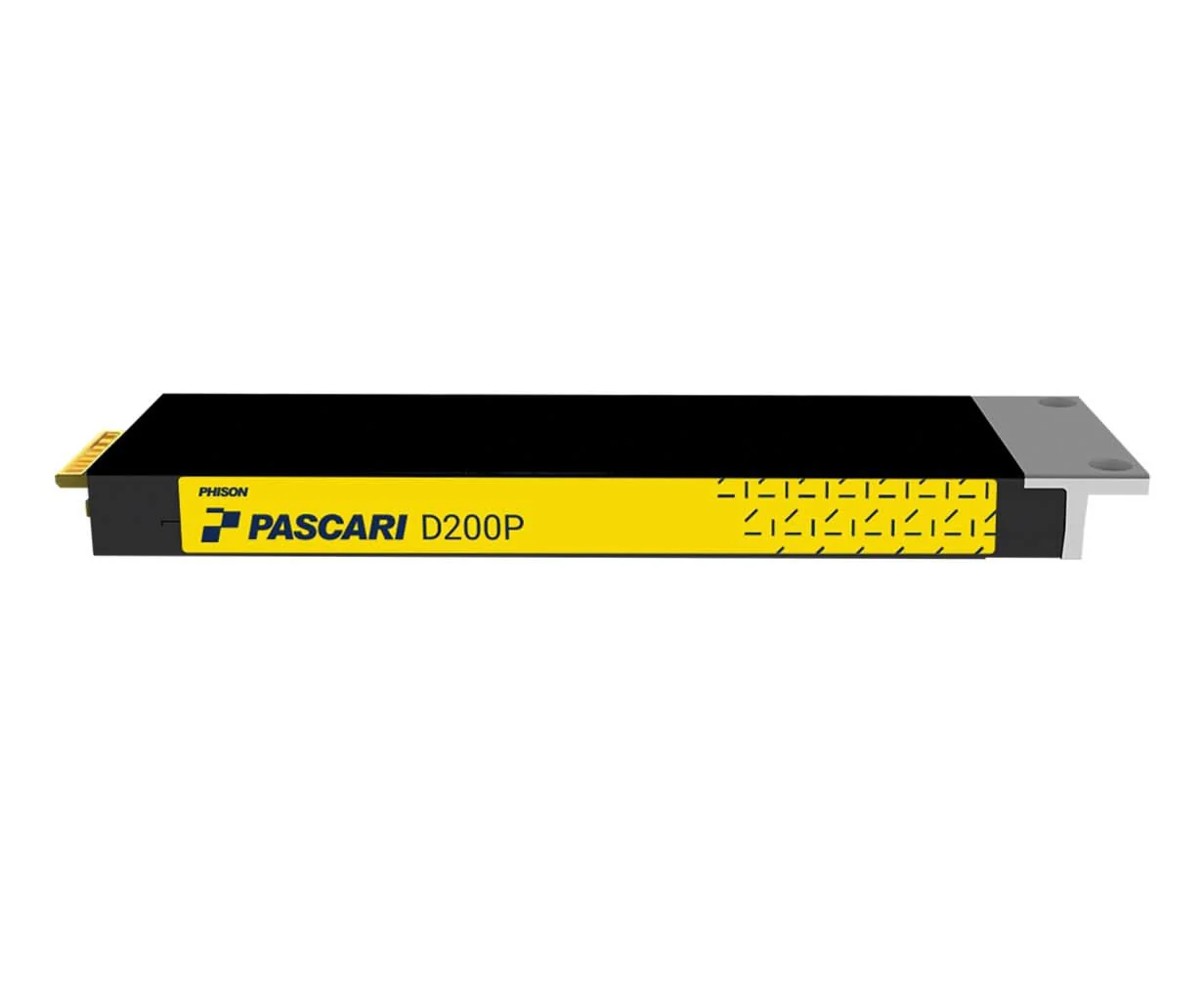

PHISON DP20AH033T84P214T0910 Pascari D200P 3.84TB EDSFF E1.S PCIe Gen5x4 Single Port SED SSD
Overview
PHISON DP20AH033T84P214T0910 Pascari D200P 3.84TB EDSFF E1.S PCIe Gen5x4 Single Port SED SSD
Specifications
Model Number: DP20AH033T84P214T0910
Brand: PHISON
Alt Part Number(s): DP20AH033T84P214T0910
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: DP20AH033T84P214T0910
Capacity: 3.84 TB
Form Factor: EDSFF E1.S
PCIe Interface
PCIe Gen5x4
PCIe AER (Advanced Error Reporting)
Compliance
PCI Express Base Specification Rev. 5.0
NVM Express Base Specification Rev. 2.0
NVMe Express Management Interface Rev 1.2
Datacenter NVMe SSD Specification V2.0
SNIA SFF-TA-1009 R3.1.1 /1006 R1.5 /1020 Rev1.1 /1023 Rev 1.0
Performance
Sequential Read: up to 14,000 MB/s
Sequential Write: up to 8,400 MB/s
Random Read: up to 3,300K IOPS
Random Write: up to 220K IOPS
Power Consumption
128K Active Read (Avg. RMS): 16 W
128K Write (Avg. RMS): 19 W
4KB Active Read (Avg. RMS): 17 W
4KB Active Write (Avg. RMS): 18 W
4KB 70/30 Random READ/WRITE (Average RMS, W): 17 W
Idle Power: 4.9 W
Endurance / Reliability
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read
DWPD: 1
TBW: 7,008 TB
Environmental Specification
Temperature Range:
Operating: 0°C - 70°C with specified airflow
Non-operating: -40°C - 85°C
Shock:
Operating: 1000G, 2 ms
Non-operating: 1500G, 0.5 ms
Vibration:
Operating: 1.52 mm/20G (20~2000 Hz)
Non-operating: 3.08 Grms (7~800 Hz)
Drop: 80 cm height
Bending: ≤ 50N
Certifications and Declarations:
CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Product Ecological Compliance:
RoHS
REACH
Feature Support
128 Namespaces
Single Port
Reservation
Metadata Protection
Thermal throttling
Power Loss Protection
SMBus
End-to-End Data Path Protection
TCG Opal 2.0
Hardware AES-XTS 256-bit Encryption
Sanitize
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
