Overview

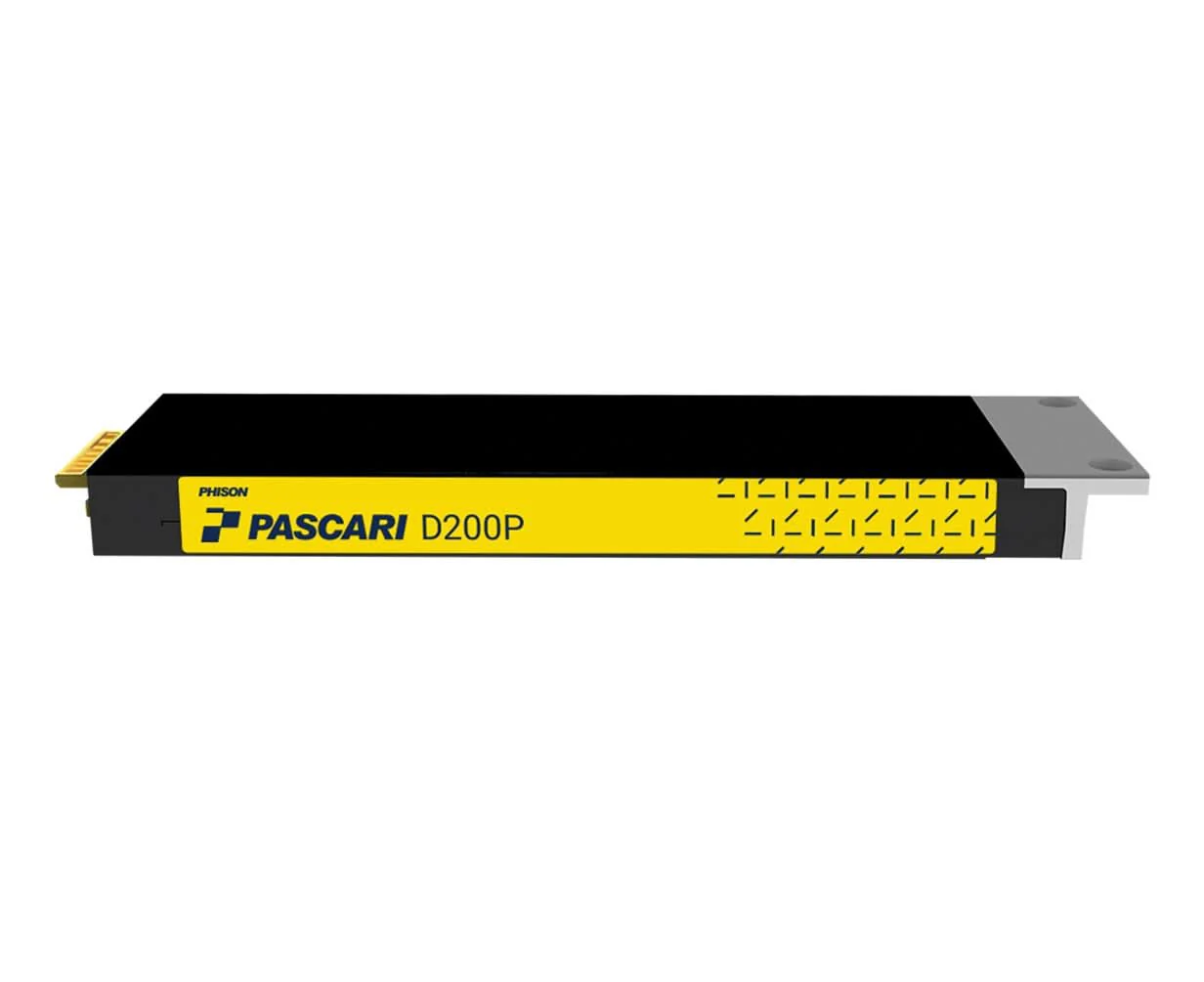

 PHISON DP20AH031T92P212T0410 Pascari D200P 1.92TB EDSFF E1.S PCIe Single Port SED SSD

Specifications

Model Number:  DP20AH031T92P212T0410

Brand:   PHISON

Alt Part Number(s):    DP20AH031T92P212T0410

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  DP20AH031T92P212T0410

Capacity: 1.92 TB

Form Factor: EDSFF E1.S

Interface: PCIe Gen5 x4

Advanced Error Reporting: PCIe AER

Compliance:
PCI Express Base Spec Rev. 5.0
NVMe Base Spec Rev. 2.0
NVMe-MI Rev. 1.2
Datacenter NVMe SSD Spec V2.0
SNIA SFF-TA-1009 R3.1.1 / 1006 R1.5 / 1020 Rev1.1 / 1023 Rev 1.0

Sequential Read: up to 14,000 MB/s
Sequential Write: up to 4,200 MB/s
Random Read: up to 2,350K IOPS
Random Write: up to 140K IOPS

Active Power (128K Read, Avg. RMS): 16 W
Active Power (128K Write, Avg. RMS): 14 W
Active Power (4K Read, Avg. RMS): 15 W
Active Power (4K Write, Avg. RMS): 16 W
Active Power (4K 70/30 R/W, Avg. RMS): 13 W
Idle Power: 4.9 W

MTBF (million hours): 2.5
UBER: < 1 sector per 10¹⁸ bits read
DWPD: 1
TBW: 3,504 TB

Operating Temp. (°C): 0 – 70 (with airflow)
Non-Operating Temp. (°C): -40 – 85

Shock (Operating): 1000 G, 2 ms
Shock (Non-Operating): 1500 G, 0.5 ms
Vibration (Operating): 1.52 mm / 20 G (20–2000 Hz)
Vibration (Non-Operating): 3.08 Grms (7–800 Hz)
Drop: 80 cm height
Bending: ≤ 50 N

Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL

Environmental Compliance: RoHS, REACH

Features:
128 Namespaces
Single Port
Reservation
Metadata Protection
Thermal Throttling
Power Loss Protection
SMBus
End-to-End Data Path Protection
TCG Opal 2.04
Hardware AES-XTS 256-bit Encryption
Sanitize

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
