Overview

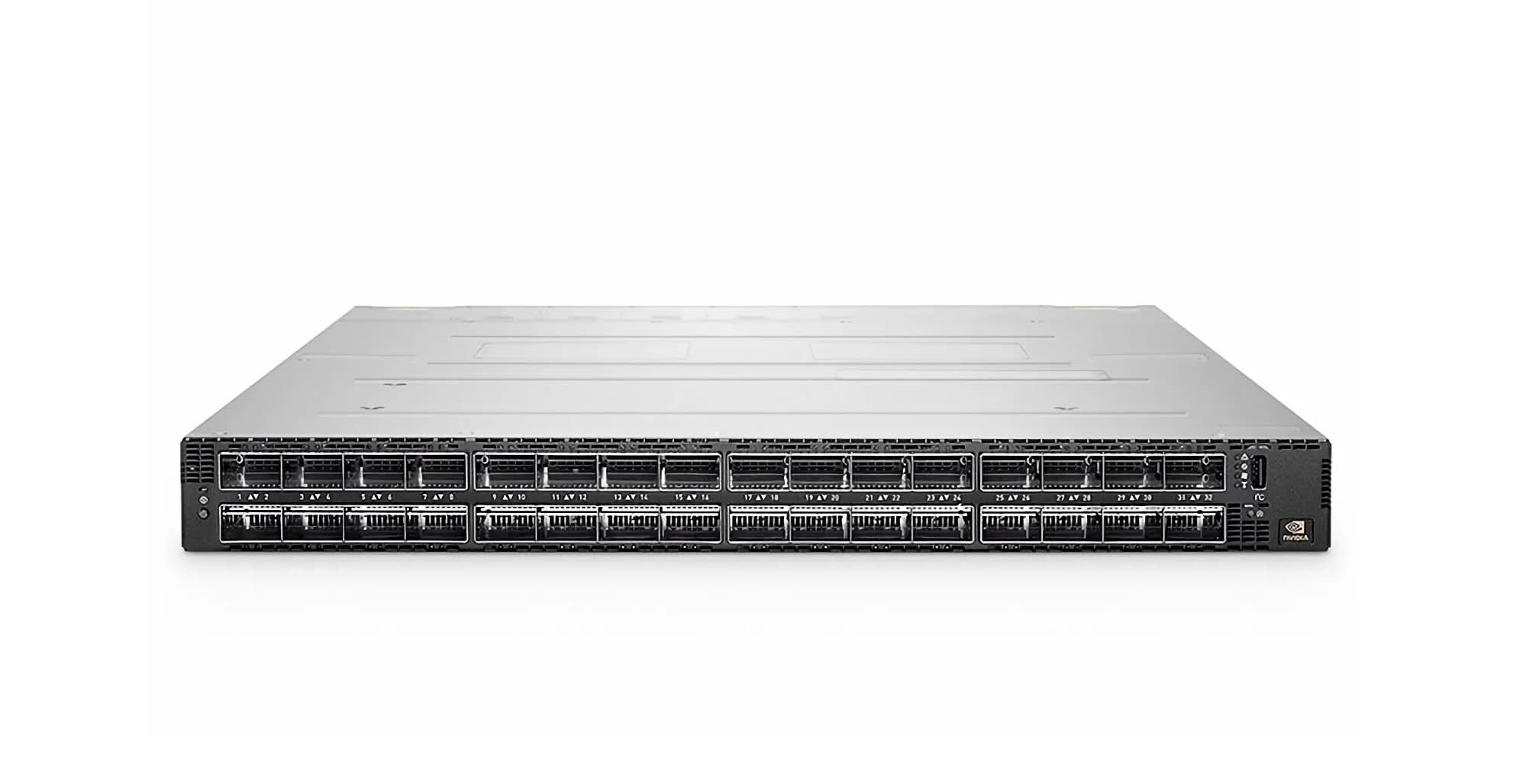

The MQM9790-NS2F is the part number for the NVIDIA Quantum-2 QM9790 Unmanaged 64-Port NDR 400Gb/s InfiniBand Switch, a high-performance networking device designed for data centers, high-performance computing (HPC), and artificial intelligence (AI) environments



Specifications

Model Number:  MQM9790-NS2F

Brand:  Nvidia

Alt Part Number(s):  MQM9790-NS2F

Product Type:  Data Center Switch



Technical Description

Brand:  Nvidia

Model Number:  MQM9790-NS2F

Switch Chip:  NVIDIA Quantum-2 IC

Total Ports:  64 x 400Gb/s InfiniBand ports

Expansion Slot Type:  OSFP

Port Speed:  40, 56, 100, 200, 400 Gb/s per port

Memory:  8GB

Flash Memory:  16GB

Throughput:  51.2 Tb/s bidirectional

Capacity:  Over 66.5 billion packets per second

Power Consumption:  1720W

Input Voltage:   AC 120V-230V

Form Factor:  1U Rackmount

Height:  1.7"

Width:  17"

Depth:  26"
