Overview

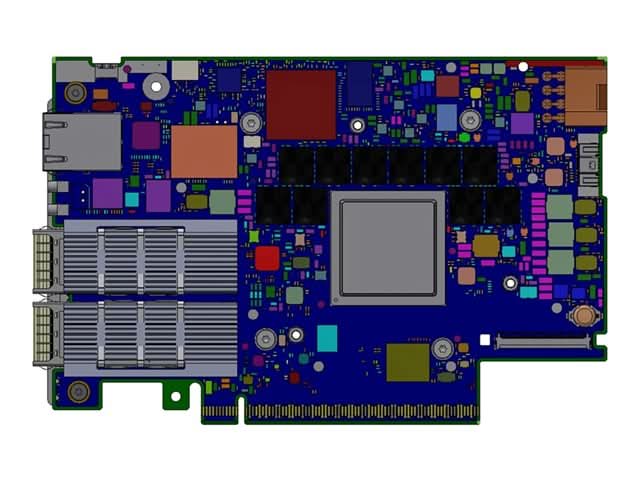

 NVIDIA 900-9D3C6-00CV-DA0 BlueField-3 B3220SH E-Series FHHL 200GbE Network Adapter



Specifications

Model Number:  900-9D3C6-00CV-DA0

Brand:   NVIDIA

Alt Part Number(s):    900-9D3C6-00CV-DA0

Product Type:  Network Adapter



Technical Description

Brand:  NVIDIA

Model:  900-9D3C6-00CV-DA0

Form Factor: Plug-in card

Interface (Bus) Type: PCI Express 5.0 x16

PCI Specification Revision: PCIe 5.0, PCIe 4.0, PCIe 3.0, PCIe 2.0, PCIe 1.1

Ports: 200 Gigabit QSFP112 x 2

Connectivity Technology: Wired

Cabling Type: Ethernet 200GBase-CR4, Ethernet 100GBase-CR4, Ethernet 100GBase-CR2, Ethernet 100GBase-CR1, Ethernet 50GBase-CR, Ethernet 50GBase-R2, Ethernet 40GBASE-CR4, Ethernet 40GBase-R2, Ethernet 25GBase-R, Ethernet 10GBase-R, Ethernet 10GBase-CX4, Ethernet 1000Base-CX, Ethernet 200GAUI-4, Ethernet 100GAUI-2, Ethernet 200GAUI-2, Ethernet 50GAUI-2, Ethernet 50GAUI-1, Ethernet 25GAUI

Data Link Protocol: 200GbE, 100GbE, 50GbE, 40GbE, 25GbE, 10GbE, 1GbE

Features: Integrated BMC, 16-core CPU, InfiniBand EDR Link support, InfiniBand FDR Link support, InfiniBand HDR Link support, InfiniBand HDR100 Link support, InfiniBand NDR200 Link support, InfiniBand SDR Link support, FHHL, auto-negotiation, PCIe x16 extension option, crypto disabled, XLPPI electrical interface

RAM: 48 GB

Interfaces: 2 x 200Gb Ethernet / 200Gb InfiniBand – QSFP112

Compliant Standards: IBTA 1.5, CB, cTUVus, FCC, VCCI, ICES, RCM, RoHS

Power: DC 12 V

Voltage Required: DC 12 V

Dimensions (WxDxH): 6.6 in x 4.4 in

Min Operating Temperature: 32 °F

Max Operating Temperature: 131 °F

Humidity Range Operating: 10 – 85% RH



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
