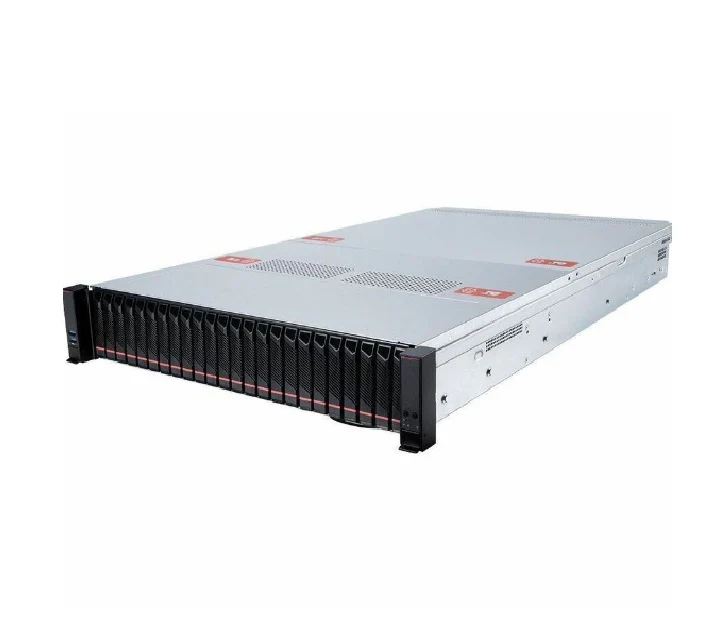

The S5062X270RAU24 is a model number for the MSI CX270-S5062, a high-density 2U dual-socket enterprise server. Built on the OCP Datacenter Modular Hardware System (DC-MHS) architecture, it is engineered for compute-intensive workloads such as AI inference, cloud computing, and large-scale data processing.

• 2U (DC-MHS architecture)

• Dual Intel® Xeon® 6700 series processors, TDP up to 350W

• (32) DDR5 RDIMM, 8 channels per CPU(2DPC), up to 6400MT/s(1DPC) and 5200MT/s(2DPC)

• (24) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays

• (2) Rear hot-swap E1.S 9.5mm PCIe 5.0 x4 NVMe drive bays

• (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports

• Max (3) PCIe 5.0 x16 expansion slots

• (1) PCIe 5.0 x16 OCP3 NIC Mezzanine slot (NCSI supported)

• (1) 1000Base-T Dedicated Server Management port with:

• ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support

• Dual BIOS & BMC

• TPM2.0 and Hardware Root of Trust module are supported as optional

Product Specification:

Package Contents: S5062X270RAU24 Barebone Systems 1 x Quick guide 1 x Slide rail Kit 2 x CPU Coolers 2 x CPU Carrier E2A 2 x CPU Carrier E2B 2 x CRPS PSUs(inside system) 2 x Power cables PCIe CEM5 (12VHPWR) 16-pin
Product Type: Barebone System
Input Voltage: 120 V AC,230 V AC
Manufacturer Website Address: http://www.msi.com
Packaged Quantity: 1
Form Factor: Rack-mountable
Manufacturer: MSI
Product Name: S5062X270RAU24 Barebone Systems
Processor Supported: Xeon 6
Raid Levels: 0, 1, 5, 10
Controller Type: NVMe
Processor Socket: Socket LGA-4710
Rack Height: 2U
Brand Name: MSI
Memory Technology: DDR5 SDRAM
Thermal Design Power: 350 W
Chipset Manufacturer: Intel
Graphics Controller Manufacturer: ASPEED
Number Of Power Supplies Installed: 2
Graphics Memory Accessibility: Dedicated
Number Of Processors Supported: 2
Number Of Processors Installed: 2
Raid Supported: Yes
Ethernet Technology: Gigabit Ethernet
Number Of Total Expansion Bays: 24
Number Of Pci Express X16 Slots: 3
Number Of Network (Rj 45) Ports: 1
Network (Rj 45): Yes
Maximum Power Supply Wattage: 2700 W
Total Number Of Usb Ports: 2
Number Of Onboard Usb 2.0 Ports: 1
Number Of 2.5" Bays: 24
Total Number Of Expansion Slots: 3
Number Of M.2 Interfaces: 2
Number Of Usb Type A Ports: 1
Total Number Of Memory Slots: 32
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Feature1: 2U (DC-MHS architecture)
Feature2: Dual Intel® Xeon® 6700 series processors, TDP up to 350W
Feature3: (32) DDR5 RDIMM, 8 channels per CPU(2DPC), up to 6400MT/s(1DPC) and 5200MT/s(2DPC)
Feature4: (24) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
Feature5: (2) Rear hot-swap E1.S 9.5mm PCIe 5.0 x4 NVMe drive bays
Feature6: (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports
Feature7: Max (3) PCIe 5.0 x16 expansion slots
Feature8: (1) PCIe 5.0 x16 OCP3 NIC Mezzanine slot (NCSI supported)
Feature9: (1) 1000Base-T Dedicated Server Management port with:
Feature10: ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
Feature11: Dual BIOS & BMC
Feature12: TPM2.0 and Hardware Root of Trust module are supported as optional
