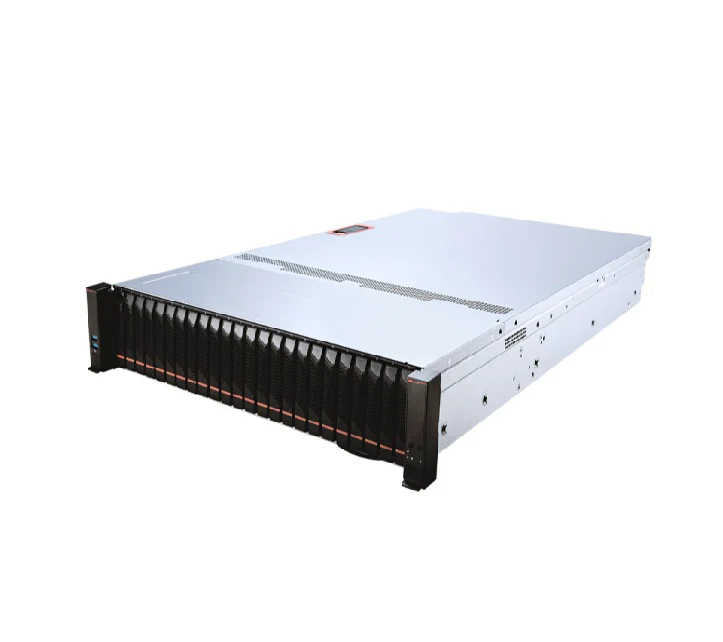

The S4056X271RAU24 is a model number for the MSI CX271-S4056, a high-density 2U single-socket enterprise server. Part of MSI’s DC-MHS (Datacenter Modular Hardware System) lineup, it is optimized for maximum memory capacity and high-TDP processing, making it ideal for AI, virtualization, and cloud-native workloads.

• 2U (DC-MHS architecture)

• Single AMD EPYC™ 9004/9005 Series processor, TDP up to 500W

• (24) DDR5 RDIMM, 12 channels(2DPC), up to 5200MT/s(1DPC) and 4400MT/s(2DPC)

• (24) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays

• (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports

• (2) PCIe 5.0 x16 OCP3 NIC Mezzanine slot (NCSI supported)

• (1) 1000Base-T Dedicated Server Management port with:

• ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support

• Dual BIOS & BMC

• TPM2.0 and Hardware Root of Trust module are supported as optional

Product Specification:

Package Contents: S4056X271RAU24 Barebone Systems 1 x Quick guide 1 x Slide rail Kit 2 x CPU Coolers 2 x CRPS PSUs(inside system)
Product Type: Barebone System
Input Voltage: 120 V AC,230 V AC
Manufacturer Website Address: http://www.msi.com
Maximum Memory Supported: 6 TB
Packaged Quantity: 1
Form Factor: Rack-mountable
Manufacturer: MSI
Product Name: S4056X271RAU24 Barebone Systems
Processor Supported: EPYC
Controller Type: NVMe
Processor Socket: Socket SP5 LGA-6096
Rack Height: 2U
Brand Name: MSI
Plug/Connector Type: C13
Memory Technology: DDR5 SDRAM
64 Bit Processing: Yes
Thermal Design Power: 500 W
Processor Manufacturer: AMD
Chipset Manufacturer: AMD
Graphics Controller Manufacturer: ASPEED
Number Of Power Supplies Installed: 2
Graphics Memory Accessibility: Dedicated
Number Of Processors Supported: 1
Ethernet Technology: Gigabit Ethernet
Number Of Total Expansion Bays: 24
Number Of Pci Express X16 Slots: 2
Number Of Network (Rj 45) Ports: 1
Network (Rj 45): Yes
Maximum Power Supply Wattage: 2000 W
Total Number Of Usb Ports: 3
Number Of Usb 3.0 Ports: 1
Number Of 2.5" Bays: 24
Total Number Of Expansion Slots: 2
Mini Displayport: Yes
Number Of M.2 Interfaces: 2
Total Number Of Memory Slots: 24
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Feature1: 2U (DC-MHS architecture)
Feature2: Single AMD EPYC™ 9004/9005 Series processor, TDP up to 500W
Feature3: (24) DDR5 RDIMM, 12 channels(2DPC), up to 5200MT/s(1DPC) and 4400MT/s(2DPC)
Feature4: (24) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
Feature5: (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports
Feature6: (2) PCIe 5.0 x16 OCP3 NIC Mezzanine slot (NCSI supported)
Feature7: (1) 1000Base-T Dedicated Server Management port with:
Feature8: ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
Feature9: Dual BIOS & BMC
Feature10: TPM2.0 and Hardware Root of Trust module are supported as optional
