Overview

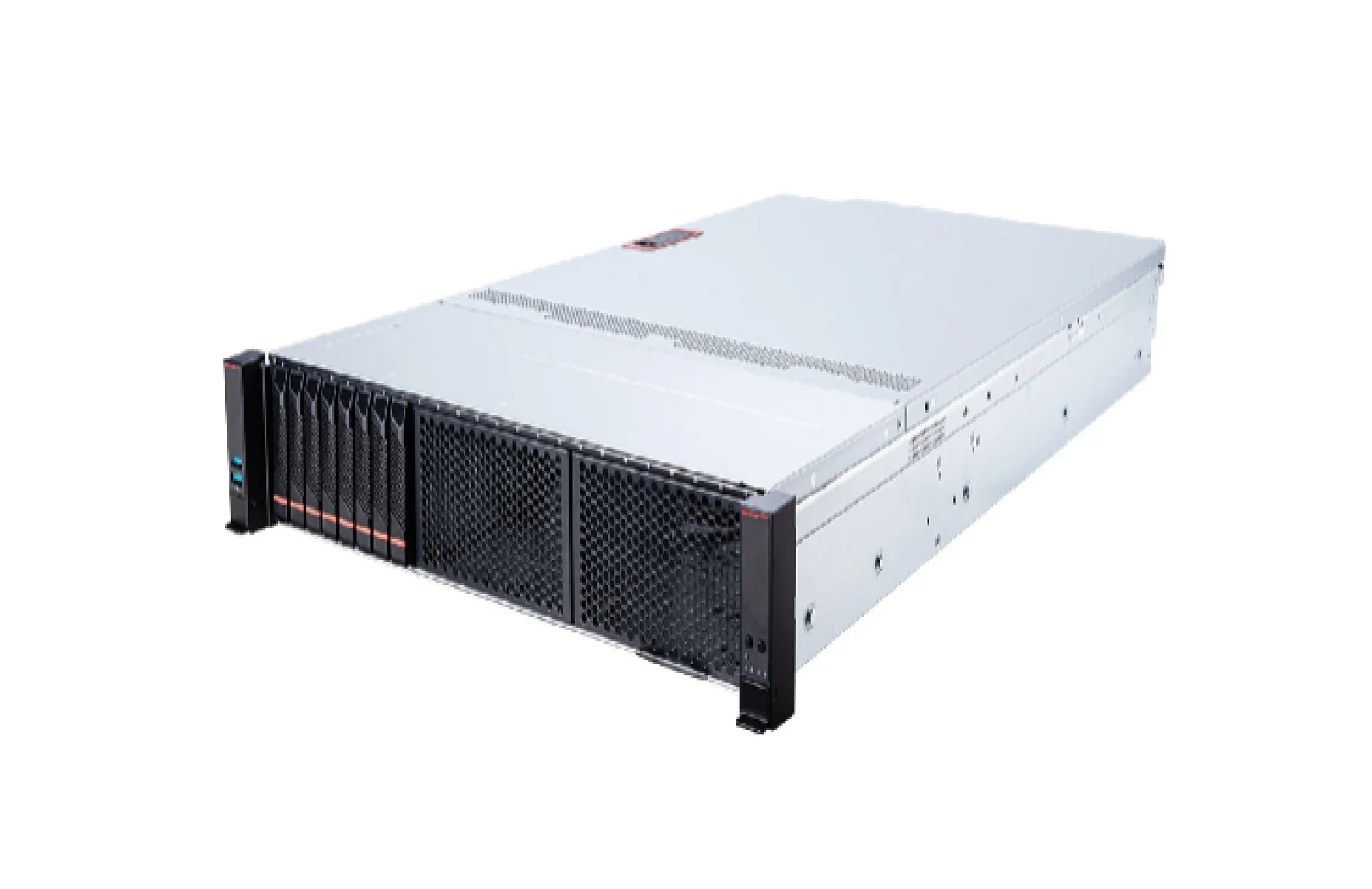

The MSI S3066X271RAU8 is a 2U rackmount server barebone system from the MSI CX271-S3066 series. It is specifically configured as a single-socket platform that balances high-speed NVMe storage with GPU expansion capabilities



Specifications

Model Number:  S3066X271RAU8

Brand:  MSI

Alt Part Number(s):  S3066X271RAU8

Product Type:  Barebone Server

Technical Description

Brand:  MSI

Model Number:  S3066X271RAU8

Model Series:  CX271-S3066

Processor Type:  Single Intel Xeon 6700E/ 6500P/6700P-Series Processor

Processor Core:  86-Core

Processor Thread:  172-Thread

Processor Power:  TDP Up to 350W

Processor Socket:  (1) LGA4710 (Socket E2)

Motherboard:  MS-S376

Chipset Type:  System-on-a-Chip (SoC)

GPU Modular:  NVIDIA MGX and OCP DC-MHS

Graphics Controller:  ASPEED AST2600

Networking:  (2) PCIe 5.0 x16 OCP3.0 slots (NCSI supported)

RAID Levels:  NVMe RAID 0/1/5/10 support Intel VROC

Number of Drive Bays:  (8) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays

Internal Storage:  (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports

Expansion Slots:  3 x PCIe 5.0 x16 slots

Memory Supported:  4TB

Memory Size:  256GB(RDIMM), 64GB(MRDIMM)

Memory Technology:  DDR5

Memory Speed:  RDIMM-6400MT/s(1DPC), 5200MT/s(2DPC), MRDIMM-8000MT/s

Memory Slots:  16 DIMM slots

Memory Channels:  8-Channels

Cooling:  (1) EVAC air cooling module, (6) 6056 Hot-swap System Fans

Power Supply:  (1+1) Redundant 2400W CRPS 80PLUS Titanium

Form Factor:  2U Rackmount

Height:  3.4"

Width:  17.2"

Depth:  30"

*Product Descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
