Overview

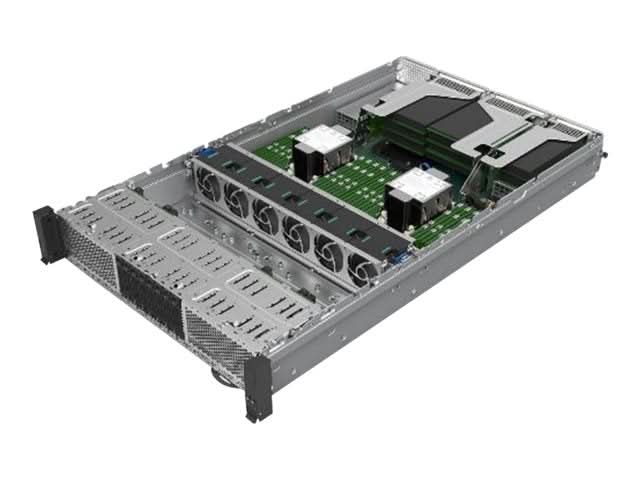

MITAC M50CYP2UR208 Socket P4 2U Rack-mountable Server.



Specifications

Model Number: M50CYP2UR208

Brand:  MITAC

Alt Part Number(s):  M50CYP2UR208

Product Type:  Server



Technical Description

Brand:  MITAC

Model: M50CYP2UR208

Product Description: Intel Server System M50CYP2UR208 - Rackmount, No CPU, 0 GB RAM, No HDD

Type: Server - Rackmount

Height: 2U

Processor Installed: None

Max CPU Supported: 2

CPU Socket: Socket P4

Chipset: Intel C621A

RAM Installed / Max: 0 GB / 12 TB

RAM Technology: DDR4 SDRAM

RAM Form Factor: 288-pin DIMM

RAM Slots: 32 total

RAM Features: Load-Reduced DIMM (LRDIMM)

Storage Bays:

24 total / 24 free × 2.5" hot-swap

8 × hot-swap bays

2 × internal bays

Drive Type Installed: None

Storage Controller: RAID

RAID Levels Supported: RAID 0, 1, 5, 10

Optical Drive: None

Monitor: None

Interfaces:

4 × USB 3.0 (1 front, 3 rear)

2 × USB 2.0 (1 internal)

2 × Serial ports

Embedded Security: Trusted Platform Module (TPM 2.0) Security Chip

Power Supply Type: Power Supply (not included)

Power Supplies Installed: 0

Included Accessories:

2 × Standard CPU carriers

6 × System fans

Air duct

16 × DIMM slot blanks

Front I/O panel assembly

Intel Server Board M50CYP2SBSTD

Chassis with Quick Reference Label affixed to top cover

Cables Included:

I2C cable

Power splitter cable



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
