Overview

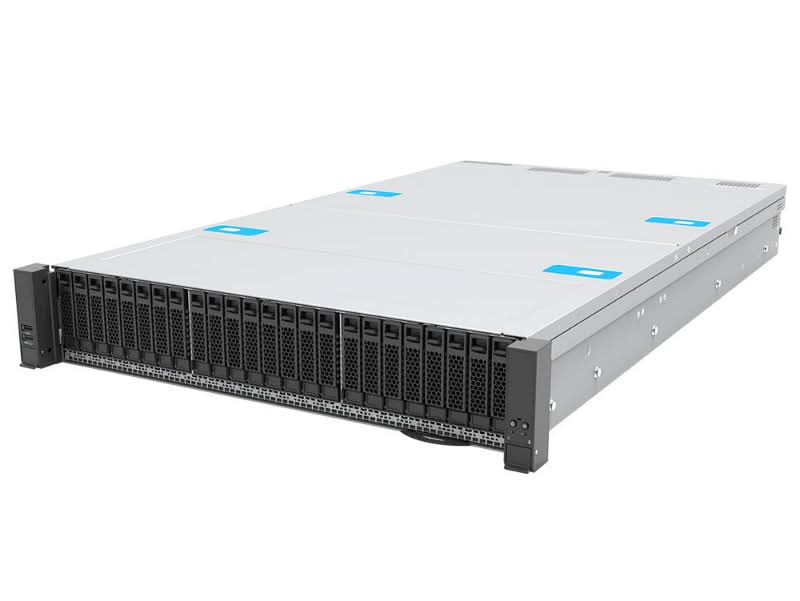

MITAC M50FCP2UR208 LGA4677 2U Rack-mountable Server System



Specifications

Model Number: M50FCP2UR208

Brand:  MITAC

Alt Part Number(s):  M50FCP2UR208

Product Type:  Server



Technical Description

Brand:  MITAC

Model: M50FCP2UR208

Product Description: Intel Server System M50FCP2UR208 - Rackmount, No CPU, 0 GB RAM, No HDD

Form Factor: Rack-mountable - 2U

Processor Installed: None

Max CPU Supported: 2

CPU Socket: LGA4677 Socket-E

Motherboard: Intel Server Board M50FCP2SBSTD

RAM Installed / Max: 0 GB (installed) / 12 TB (maximum)

RAM Technology: DDR4 SDRAM

RAM Form Factor: 288-pin DIMM

RAM Slots: 32 total

RAM Features: Load-Reduced DIMM (LRDIMM)

Storage Controller: RAID

RAID Levels Supported: RAID 0, 1, 5, 10

Storage Bays (Hot-Swap):

4 total (4 free) × 2.5" hot-swap

8 × hot-swap bays (total)

2 × internal bays

Hard Drive Installed: None

Optical Drive: None

Embedded Security: Trusted Platform Module (TPM 2.0)

Interfaces:

2 × USB 3.0 (1 front, 1 rear)

3 × USB 2.0 (1 front, 2 rear)

1 × Serial port

Monitor: None

Power Supply Type: Power Supply (not included)

Power Supply Installed: 0

Included Accessories:

Front I/O panel assembly

16 × DIMM slot blanks

Chassis with Quick Reference Label affixed to top cover

2 × Processor carrier clips

8 × 1U spare fan kit

2 × EVAC heatsinks

1U Spare PCIe riser

Cables Included:

I2C cable

Power splitter cable
