Overview

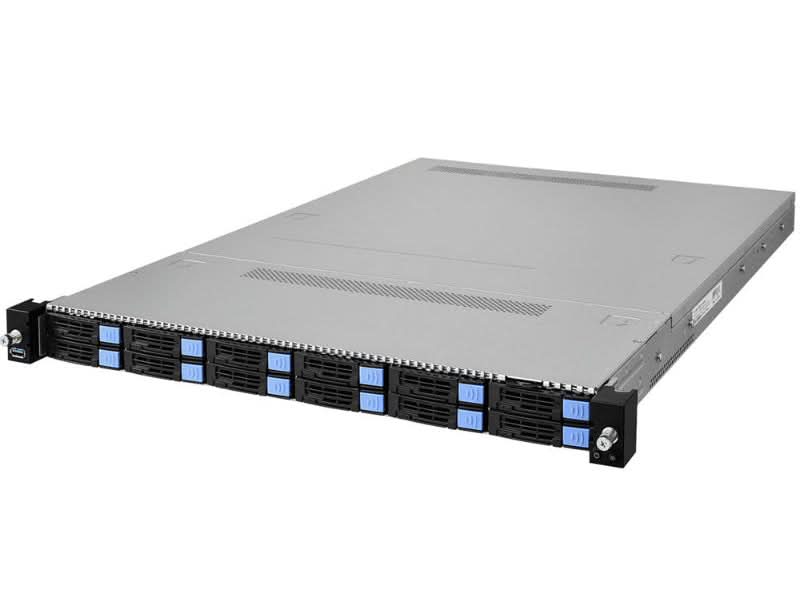

MITAC B8056G68CE12HR-2T is a 1U rackmount server powered by AMD EPYC 9004 Series CPUs, supporting up to 6TB DDR5 RDIMM across 24 slots and 12 NVMe U.2 hot-swap bays. It features dual PCIe Gen 5 x16 riser slots, redundant 860W Titanium PSUs, and AST2600 BMC for advanced remote management.



Specifications

Model Number: B8056G68CE12HR-2T

Brand:  MITAC

Alt Part Number(s):  B8056G68CE12HR-2T

Product Type: Server



Technical Description

Brand: MITAC

Model:   B8056G68CE12HR-2T

Form Factor: 1U Rackmount, GPU Servers

Chassis Model: GC68C

Dimension (D x W x H): 26.77" x 17.26" x 1.69" (680 x 438.5 x 43mm)

Motherboard Name: S8056GM2NE-2T

Board Dimension: 14.18" x 12.16" (360.2 x 308.8mm)

Front Panel Buttons: (1) PWR w/ LED; (1) ID w/ LED

Front Panel LEDs: (1) ID; (1) PWR

I/O Ports: (1) USB 3.2 Gen.1 port

Processor Qty / Socket Type: (1) AMD Socket SP5

Supported CPU Series: (1) AMD EPYC™ 9004 Series Processor

Thermal Design Power Wattage: Max up to 400W* (cTDP)

Supported DIMM Qty: (24) DIMM slots

DIMM Type / Speed: AMD EPYC™ 9004: RDIMM: Up to 4800 MT/s (1DPC); 3600 MT/s (2DPC)

Memory Capacity: Up to 6,144 GB RDIMM/3DS RDIMM DDR5 4800 memory

Memory Channel: 12 Channels per CPU

Memory Voltage: 1.1V

PCIe Expansion Slots: (2) PCIe Gen 5 x16 slots

Pre-installed TYAN Riser Card (PCIe Gen.5): (1) M7136G68-L16-1F riser card for (1) FH/HL PCIe Gen.5 x16 slot (Left); (1) M7136G68-R16-1F riser card for (1) FH/HL PCIe Gen.5 x16 slot (Right)

Other Expansion Slots: (1) PCIe Gen 5 x16 OCP 3.0 mezzanine slot

External Drive Bay Qty / Type: (12) 2.5" hot-swap NVMe HDD/SSDs

Front Drive Bay Interface: (12) NVMe U.2

Front Drive Backplane Support: NVMe

Notification: PCIe Gen. 4.0 NVMe support

Power Supply Type: Slim 1U

Input Range: AC 100-127V/9.4-7.4A; AC 200-240V/4.8-4A

Frequency: 50-60 Hz

Output Watts: 860 Watts

Efficiency: 80 plus Titanium

Redundancy: 1+1

Serviceability: Hot-swap

System Cooling Configuration Fan: (3) 4028 fans; (3) 4056 fans

Air Duct: Tailored Air Duct

LAN Qty / Port: (2) 10GbE ports; (1) GbE dedicated for IPMI

LAN Controller: Intel X710-AT2

PHY: Realtek RTL8211F

Storage NVMe Connector (M.2): (2) 22110/2280 (by PCIe Gen 4 interface)

Storage NVMe Connector (U.2): (6) SFF-TA-1016 (MCIO 8x) for (12) front NVMe

Graphic Connector Type: D-Sub 15-pin

Graphic Resolution: Up to 1920x1200

Chipset: Aspeed AST2600

I/O Ports USB: (1) USB3.2 Gen.1 conn. (Type-A); (1) USB3.2 Gen.1 header; (1) USB3.2 Gen.1 port (@ front); (2) USB3.2 Gen.1 ports (@ rear)

COM Port: (1) DB-9 COM port

VGA Port: (1) D-Sub 15-pin port

RJ-45 Ports: (2) 10 GbE ports; (1) dedicated GbE for IPMI

Buttons: UID Button; Power Button

TPM Support: Please refer to our TPM supported list

TPM Interface: SPI

System Monitoring Chipset: Aspeed AST2600

Temperature Monitoring: Monitors temperature for CPU & system environment

Voltage Monitoring: Monitors voltage for CPU, memory, chipset & power supply

LED Indicators: Over temperature warning; Fan & PSU fail; Over voltage warning

Others: Watchdog timer support

Onboard Chipset: Aspeed AST2600

AST2600 iKVM Feature: 24-bit high quality video compression; Supports storage over IP and remote platform-flash; USB 2.0 virtual hub

AST2600 IPMI Feature: IPMI 2.0 compliant baseboard management controller (BMC); 10/100/1000 Mb/s MAC interface

BIOS Brand / ROM Size: AMI / 64MB

BIOS Feature: Hardware Monitor; FAN speed control automatic; Boot from USB device/PXE via LAN/Storage; Console Redirection; SMBIOS 3.3; PnP; Wake on LAN; ACPI 6.2; ACPI sleeping states S0, S5

Operating Temp.: 10° C ~ 35° C (50° F ~ 95° F)

Non-operating Temp.: -40° C ~ 70° C (-40° F ~ 158° F)

In/Non-operating Humidity: 90%, non-condensing at 35° C

Regulation FCC (SDoC): Class A

Regulation CE (DoC): Class A

Regulation CB/LVD: Yes

Regulation VCCI: Yes

Regulation C-Tick: Yes

Regulation BSMI: Yes

Operating System Supported: Please refer to our AVL support lists

RoHS 6/6 Compliant: Yes



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
