Overview

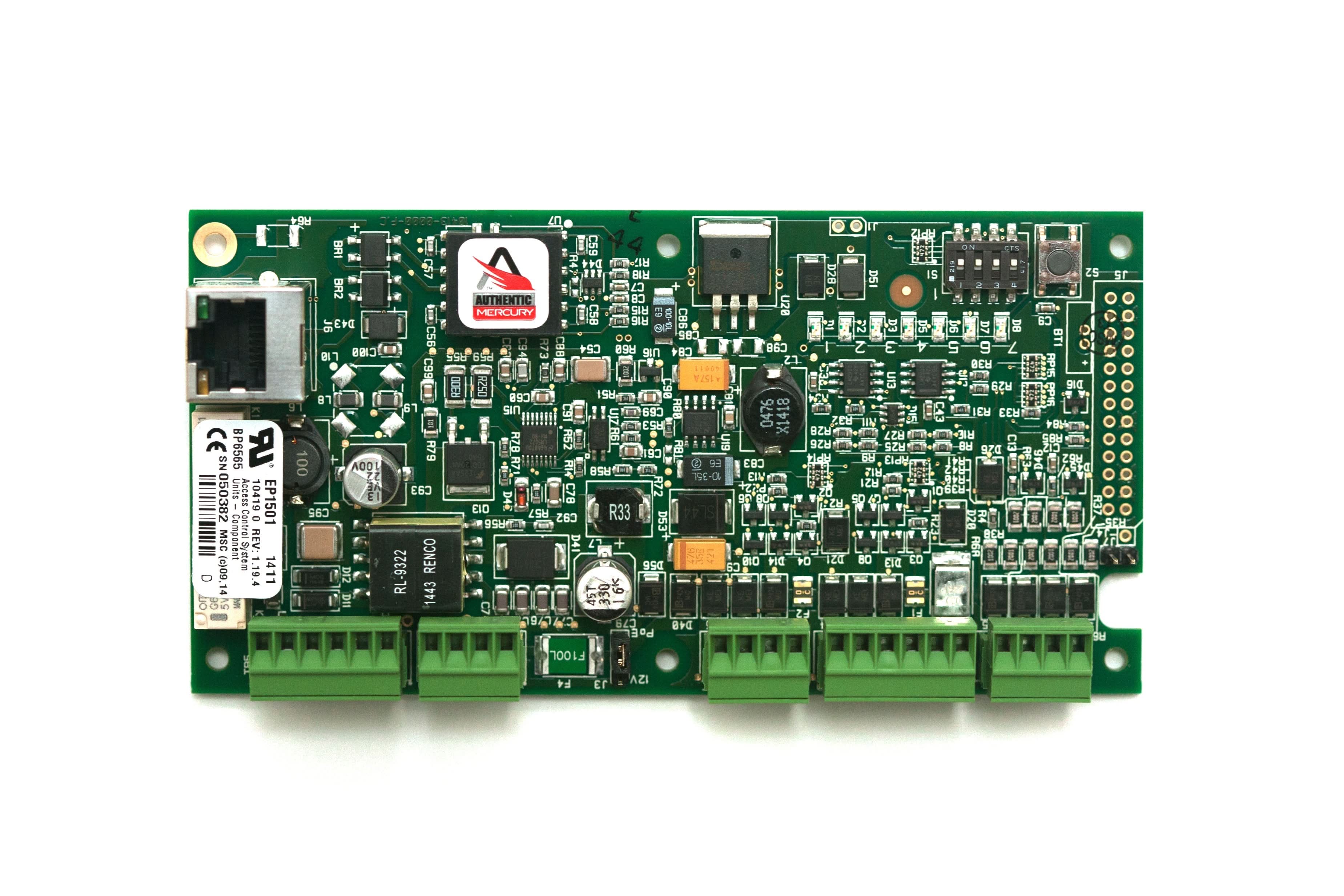

Mercury EP1501 Ethernet Single Reader Interface Intelligent Controller.



Specifications

Model Number:  EP1501

Brand:  Mercury

Alt Part Number(s):  LP1501

Product Type:  Controller

Technical Description

Brand:  Mercury

Model:  EP1501

Power Input:  PoE Power Input 12.95 W, compliant to IEEE 802.3af

Power Output:  12 Vdc @ 650 mA including reader and Auxiliary

Power:  12 Vdc  10 %: PoE or local power supply, 180 mA maximum

Data Inputs:  Reader Port 1-TTL compatible, F/2F or 2-wire RS-485, Reader Port 2:  TTL compatible or F/2F

LED Output:  TTL compatible, high > 3 V, low < 0.5 V, 5 mA source/sink maximum

Buzzer Output:  Open collector, 12 Vdc open circuit maximum, 40 mA sink maximum

Power: 1 twisted pair, 18 AWG (when using local 12 Vdc power supply)

Ethernet: CAT-5, minimum

Alarm Input:  1 twisted pair per input, 30 ohm maximum

Reader Ports:  2 Reader Ports

Power:  1 Twisted Pair, 18 AWG

Temperature Storage:  -55° - 85°C

Operational:  0° - 70° C

Humidity:  5 to 95% RHNC

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Length:  8.0”

Width:  6.0”

Height:  1.0”
