Overview

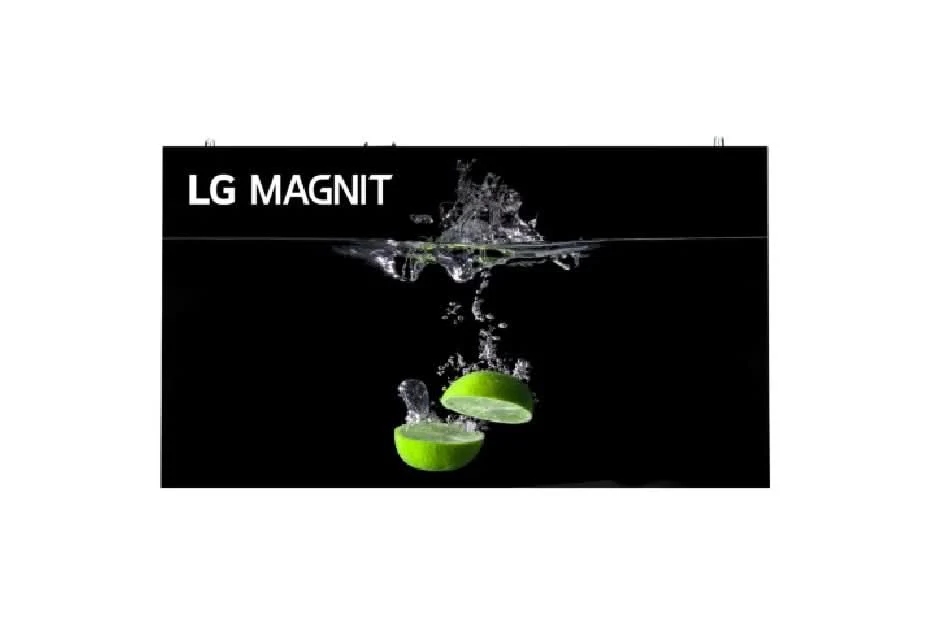

The LG MAGNIT LSAB009-U33 is a MicroLED digital signage display unit with a 0.94 mm pixel pitch and 600 nits maximum brightness. It is designed for commercial indoor video wall applications and features Chip-on-Board (COB) technology for enhanced durability.



Specifications

Model Number:  LSAB009-U33

Brand:  LG

Alt Part Number(s): LSAB009-U33

Product Type:  LED Display

Technical Description

Brand:  LG

Model Number:  LSAB009-U33

Series:  MAGNIT LSAB VI

Resolution:  640 x 360

Pixel Pitch:  0.94mm

Refresh Rate:  3,840Hz

IP Rating (Front / Rear):  IP50 / IP20

Maximum Brightness:  600 nit (Max) / 1,500 nit (Peak)

Service Access:  Front access for modules

Processing Depth:  20-bit (supports HDR10, HDR10 Pro)

LED Lifetime:  100,000 hours

Contrast Ratio (10 lux):  40,000:1

Power Consumption:  60W (Max) / 43W (Avg)
