Overview

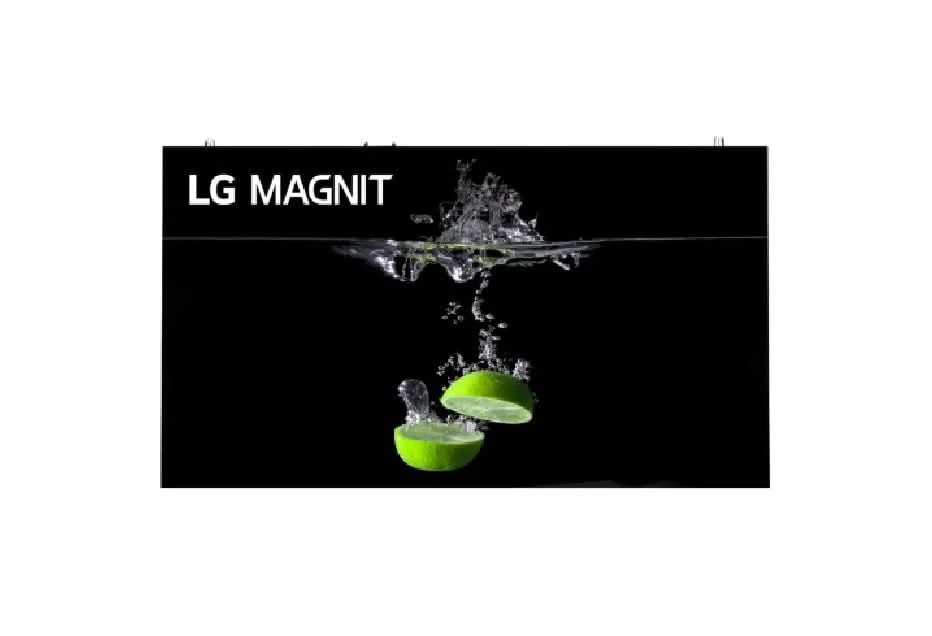

The LG MAGNIT LSAB009-T33 is a Micro LED digital signage display unit with a 0.94 mm pixel pitch and 600 nits of brightness, designed for high-end indoor commercial use. It features Chip on Board (COB) technology and a cable-less design between cabinets for simplified installation.



Specifications

Model Number:  LSAB009-T33

Brand:  LG

Alt Part Number(s):  LSAB009-T33

Product Type:  LED Display

Technical Description

Brand:  LG

Model Number:  LSAB009-T33

Series:  MAGNIT Micro LSAB VI

Resolution:  640 x 360

Pixel Pitch:  0.94mm

Pixel Configuration:  1R, 1G, 1B (Chip on Board)

Service Access:  Front and Rear

Refresh Rate:  3,840Hz

Frame Rate:  50/60Hz

Maximum Brightness:  600 nit (Max), 1,500 nit (Peak)

Power Consumption:  60W (Max) / 43W (Avg)

Power Supply:  100 to 240 V
