Overview

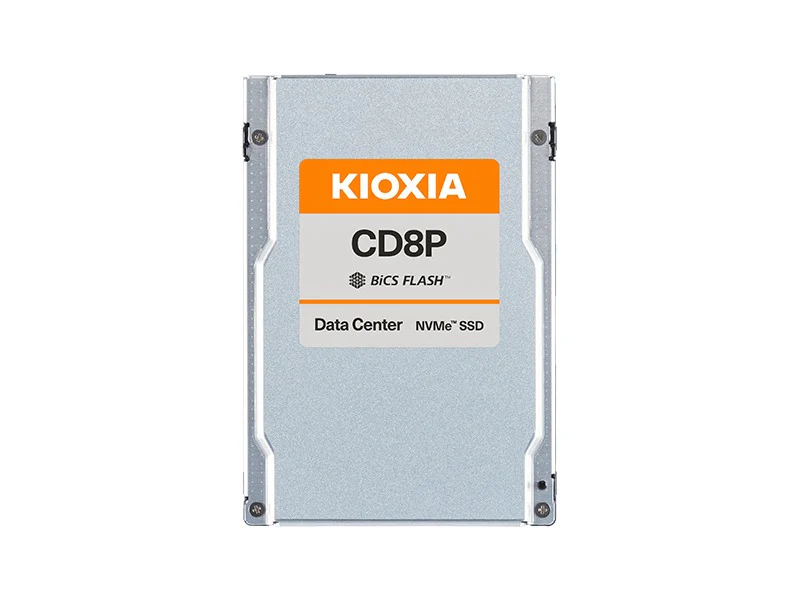

Kioxia SDF7243GEB01T CD8P 7.68TB PCIe 5.0 NVMe 2.0 Solid State Drive delivers high performance enterprise storage in a 2.5 inch form factor with advanced BiCS FLASH TLC technology. Featuring up to 2000000 IOPS random read, 200000 IOPS random write, power loss protection, SED security, and 2500000 hour MTBF, it ensures reliable and secure operation for high density data center deployments



Specifications

Model Number: SDF7243GEB01T

Brand:   Kioxia

Alt Part Number(s):   SDF7243GEB01T

Product Type:  Solid State Drive



Technical Description

Brand:  Kioxia

Model: SDF7243GEB01T

Form Factor: 2.5"

Storage: 7.68TB SSD

Flash Type: BiCS FLASH TLC

Interface: PCIe 5.0; NVMe 2.0

Max 4KB Random Read: 2000000 IOPS

Max 4KB Random Write: 200000 IOPS

MTBF: 2500000 Hours

Device Type: Power Supply

Power Consumption Operational: 21 Watt

Voltage Required: 12V +/- 10%; 3.3V +/- 15%

Width: 69.85 mm

Depth: 100.45 mm

Height: 15 mm

Weight: 130 g

Features: Designed for high-density storage deployments; Power loss protection (PLP); End-to-end data correction; Security options: SIE; SED 1213X4

Min Operating Temperature: 0 Celsius

Max Operating Temperature: 70 Celsius
