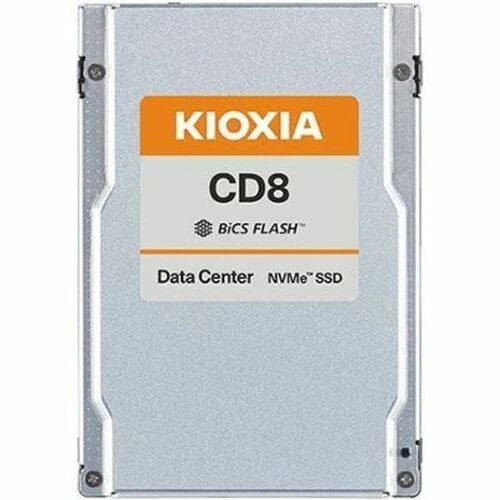

Kioxia SDF1D83GEB02T CD8 6.4TB PCIe Gen4 x4 NVMe 1.4 Solid State Drive delivers mixed use data center performance in a 2.5 inch form factor with 3 DWPD endurance and 112 layer BiCS FLASH 3D TLC technology. Featuring up to 1150000 IOPS random read, 380000 IOPS random write, 7100 MB/s sequential read, 6000 MB/s sequential write, and PCIe 4.0 x4 NVMe interface, it ensures high speed, reliable, and efficient storage for cloud and enterprise workloads.

KIOXIA CD8-V Series is a mixed use data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction pro-cessing and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, the CD8-V Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 380K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CD8-V 2.5-inch form factor SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 12.8 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.

Key Features

• PCIe® 4.0, NVMe™ 1.4 specification compliant

• Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)

• Form factor: 2.5-inch, 15mm thickness

• Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D

  • Provides more productive performance and superior data storage for a variety of files


  • Internal drive type for maximum efficiency and dependability


  • With 6.25 TB capacity you have ample space for storing millions of images, hundreds of hours of video or for music lovers, up to a million songs


  • With the stunning reading speed of 7100 MB/s, get faster boot times and improved overall computing performance


  • Write speed of 6000 MB/s enables you to perform write-related tasks in seconds rather than minutes


  • PCI Express NVMe 4.0 x4 interface provides quick data transfer and greater throughput


  • 2.5" form factor for added reliability and dependability




Product Specification:

Product Type: Solid State Drive
Device Supported: Storage System,Server
Storage Capacity: 6.25 TB
Manufacturer Part Number: KCD8XVUG6T40
Manufacturer Website Address: http://www.toshiba.com
Weight (Approximate): 4.59 oz
Drive Type: Internal
Form Factor: 2.5"
Length: 4"
Manufacturer: Toshiba
Product Model: KCD8XVUG6T40
Product Name: Data Center NVMe Mixed Use SSD
Product Series: CD8-V
Brand Name: KIOXIA
Maximum Read Transfer Rate: 7100 MB/s
Maximum Write Transfer Rate: 6000 MB/s
Drive Interface: PCI Express NVMe
Drive Interface Standard: PCI Express NVMe 4.0 x4
Random 4kb Read: 1150000IOPS
Random 4kb Write: 380000IOPS
Endurance (Dwpd): 3
Endurance Type: Mixed Use
Feature1: Provides more productive performance and superior data storage for a variety of files
Feature2: Internal drive type for maximum efficiency and dependability
Feature3: With 6.25 TB capacity you have ample space for storing millions of images, hundreds of hours of video or for music lovers, up to a million songs
Feature4: With the stunning reading speed of 7100 MB/s, get faster boot times and improved overall computing performance
Feature5: Write speed of 6000 MB/s enables you to perform write-related tasks in seconds rather than minutes
Feature6: PCI Express NVMe 4.0 x4 interface provides quick data transfer and greater throughput
Feature7: 2.5" form factor for added reliability and dependability

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
