Overview

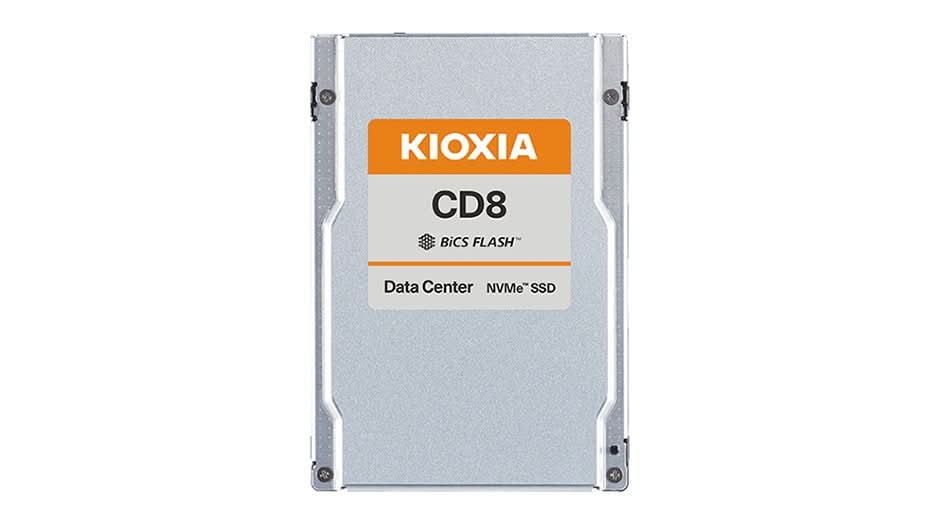

Kioxia KCD8DVUG1T60 CD8-V Series 1,600 GB PCIe 4.0 NVMe 1.4 BiCS Flash TLC Solid State Drive

Specifications

Model Number:  KCD8DVUG1T60

Brand:   Kioxia

Alt Part Number(s):    KCD8DVUG1T60

Product Type:  Solid State Drive



Technical Description

Brand:  Kioxia

Model:  KCD8DVUG1T60

Capacity: 1600 GB

Hardware Encryption: Yes

NAND Flash Memory Type: 3D triple-level cell (TLC)

Form Factor: 2.5"

Interface: PCIe 4.0 x4 (NVMe)

Drive Class: Data Center, Mixed Use

Features: 112-layer 3D BiCS FLASH, power loss data protection, End-to-end data protection, Power Loss Protection (PLP), single port, NVMe 1.4

Drive Writes Per Day (DWPD): 3

Internal Data Rate: 7200 MBps (read) / 3500 MBps (write)

Maximum 4KB Random Write: 310000 IOPS

Maximum 4KB Random Read: 1250000 IOPS

MTBF: 2500000 hours

24x7 Operation: Yes

Interfaces: 1 x PCI Express 4.0 (NVMe 1.4)

Compatible Bay: 2.5"

Power Consumption: 13 Watt (active (typical)) ¦ 5 Watt (idle)

Min Operating Temperature: 32 °F

Max Operating Temperature: 167 °F

Min Storage Temperature: -40 °F

Max Storage Temperature: 185 °F

Humidity Range Operating: 5 - 95% RH

Shock Tolerance (operating): 1000 g @ 0.5 ms

Vibration Tolerance (operating): 2.17 gRMS @ 5-800 Hz
