Overview

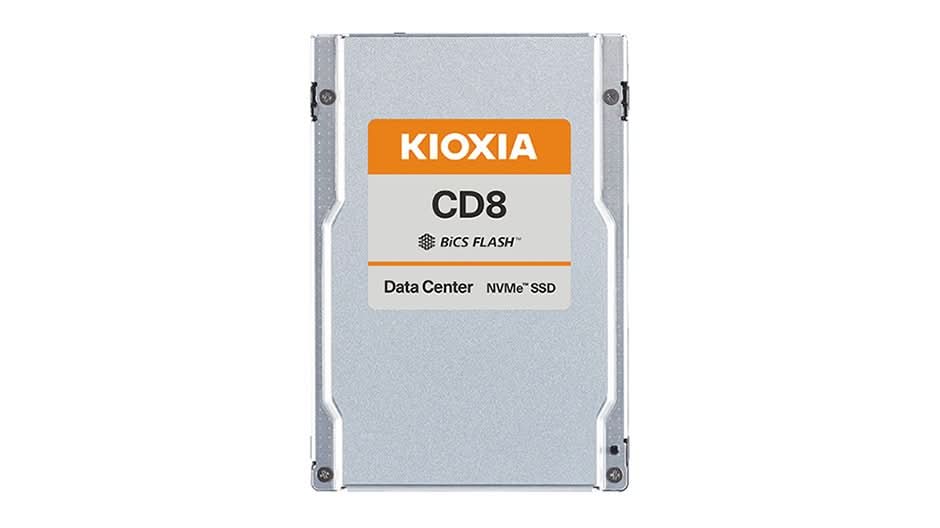

 Kioxia KCD8DVUG12T8 CD8-V 12.50 TB PCIE 4.0 x4 NVMe 2.5" Internal Solid State Drive

Specifications

Model Number:  KCD8DVUG12T8

Brand:   Kioxia

Alt Part Number(s):   KCD8DVUG12T8

Product Type:  Solid State Drive



Technical Description

Brand:  Kioxia

Model:  KCD8DVUG12T8

Capacity: 12800 GB

Hardware Encryption: Yes

NAND Flash Memory Type: 3D triple-level cell (TLC)

Form Factor: 2.5"

Interface: PCIe 4.0 x4 (NVMe)

Drive Class: Data Center, Mixed Use

Features: 112-layer 3D BiCS FLASH, power loss data protection, End-to-end data protection, NVM Express (NVMe) 1.4, Power Loss Protection (PLP)

Drive Writes Per Day (DWPD): 3

Internal Data Rate: 6600 MBps (read) / 6000 MBps (write)

Maximum 4KB Random Write: 380000 IOPS

Maximum 4KB Random Read: 1050000 IOPS

MTBF: 2500000 hours

24x7 Operation: Yes

Interfaces: 1 x PCI Express 4.0 (NVMe 1.4)

Compatible Bay: 2.5"

Power Consumption: 20 Watt (active (typical)) ¦ 5 Watt (ready)

Min Operating Temperature: 32 °F

Max Operating Temperature: 165.2 °F

Min Storage Temperature: -40 °F

Max Storage Temperature: 185 °F

Humidity Range Operating: 5 - 95% RH

Shock Tolerance (operating): 1000 g @ 0.5 ms

Vibration Tolerance (operating): 2.17 gRMS @ 5-800 Hz

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
