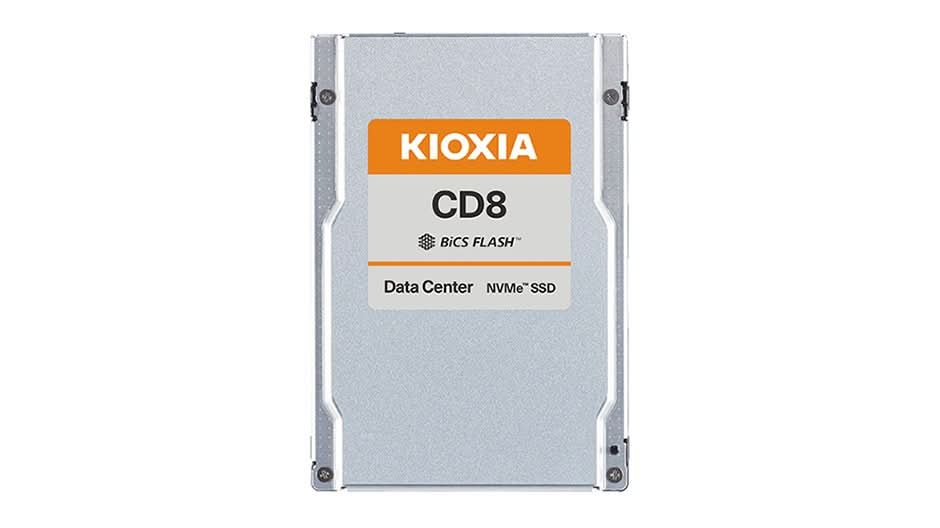

 Kioxia KCD8DRUG1T92 CD8-R Series 1,920 GB PCIe 4.0 SED 2.5in Solid State Drive

Specifications

Model Number:  KCD8DRUG1T92

Brand:   Kioxia

Alt Part Number(s):    KCD8DRUG1T92

Product Type:  Solid State Drive



Technical Description

Brand:  Kioxia

Model:  KCD8DRUG1T92

Storage Capacity: 1920 GB

Hardware Encryption: Yes

NAND Flash Memory Type: 3D triple-level cell (TLC)

Form Factor: 2.5"

Interface: PCIe 4.0 x4 (NVMe)

Drive Class: Data Center, Read Intensive

Features: 112-layer 3D BiCS FLASH, Online Transaction Processing (OLTP), single port, Power Loss Protection (PLP), End-to-end data protection, NVMe 1.4

Maximum Read Transfer Rate: 7200 MB/s

Maximum Write Transfer Rate: 3500 MB/s

Random 4KB Read: 1,250,000 IOPS

Random 4KB Write: 150,000 IOPS

Endurance (DWPD): 1

MTBF: 2,500,000 hours

24x7 Operation: Yes

Interfaces: 1 x PCI Express 4.0 x4 (NVMe)

Compatible Bay: 2.5"

Power Consumption: 13 Watt (active), 5 Watt (ready)

Operating Temperature Range: 32 °F to 167 °F

Storage Temperature Range: -40 °F to 185 °F

Humidity Range Operating: 5 - 95% RH

Shock Tolerance (Operating): 1000 g @ 0.5 ms

Vibration Tolerance (Operating): 2.17 gRMS @ 5-800 Hz
