Overview

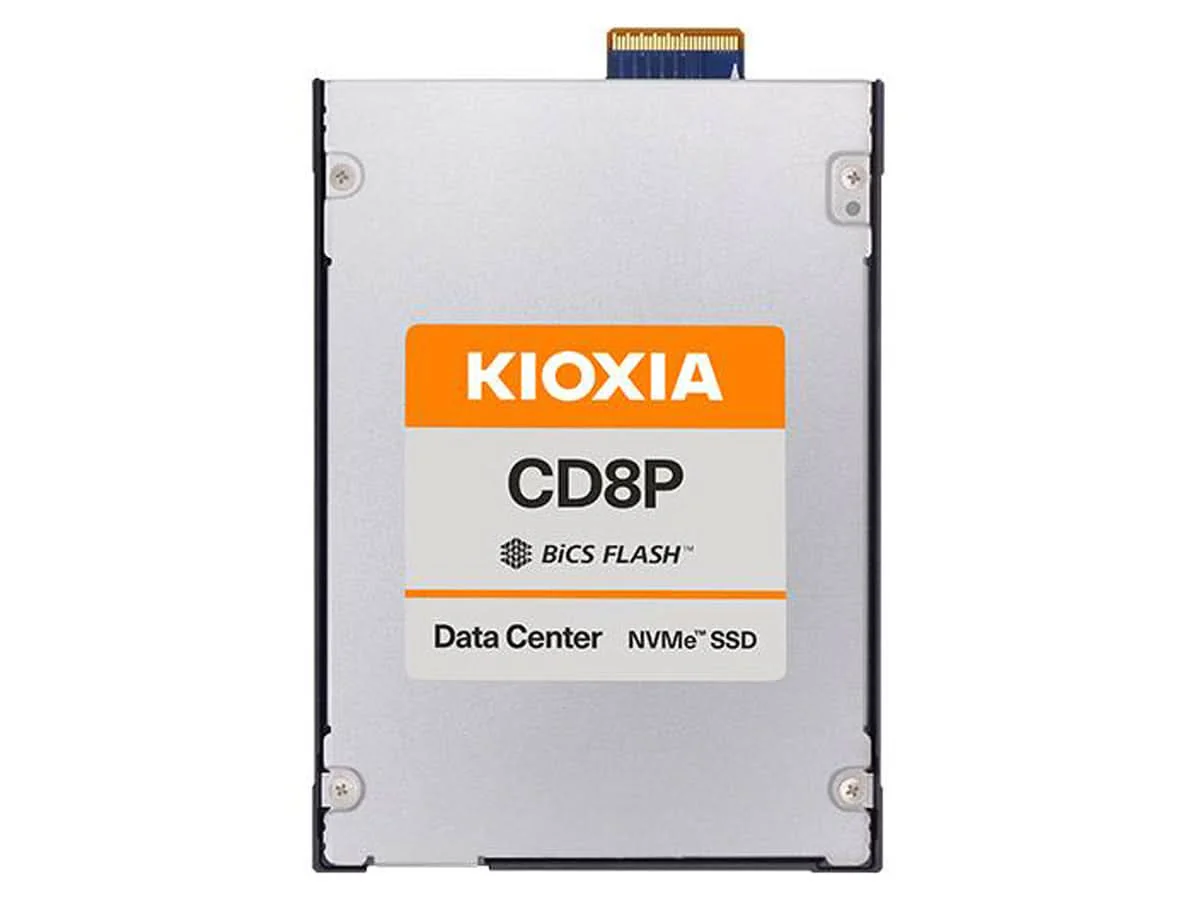

Kioxia CD8P-V KCD8DPJE3T20 is a 3.2 TB E3.S PCIe Gen5 solid state drive delivering 12 GBps read and 5.5 GBps write performance for high demand enterprise storage. It features BiCS FLASH TLC, up to 1.9M read and 400K write IOPS, 3 DWPD endurance, and efficient power usage for reliable data center operation.

Specifications

Model Number: KCD8DPJE3T20

Brand: Kioxia

Alt Part Number(s): KCD8DPJE3T20

Product Type: Solid State Drive

Technical Description

Brand: Kioxia

Model: KCD8DPJE3T20

Capacity: 3.2 TB

Form Factor: E3.S

Interface: PCIe 5.0, NVMe 2.0

Maximum Interface Speed: 128 GT/s (PCIe Gen5 x4)

Flash Memory Type: BiCS FLASH TLC

Sustained 128 KiB Sequential Read: 12,000 MB/s

Sustained 128 KiB Sequential Write: 5,500 MB/s

Sustained 4 KiB Random Read: 1,900K IOPS

Sustained 4 KiB Random Write: 400K IOPS

Supply Voltage: 12 V ±10%; 3.3 V ±15%

Power Consumption (Active): 19 Watts typical

Power Consumption (Ready): 5 Watts typical

MTTF: 2,500,000 hours

DWPD: 3

Thickness: 7.5 mm (+0.2 / -0.5 mm)

Width: 76 mm (±0.25 mm)

Length: 112.75 mm (±0.4 mm)

Weight: 110 g maximum

Temperature (Operating): 0°C to 76°C

Temperature (Non-operating): -40°C to 85°C

Humidity (Operating): 5% to 95% R.H.

Vibration (Operating): 21.27 m/s² (2.17 Grms) (5 to 800 Hz)

Shock (Operating): 9.8 km/s² (1000 G) (0.5 ms)
