Overview

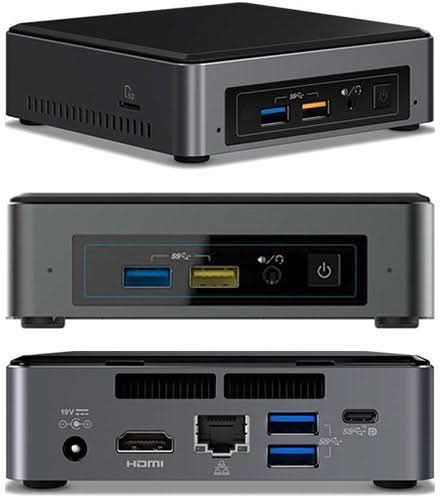

The Intel NUC7i3BNK is a compact Mini PC kit designed for customization, allowing users to select their own memory, storage, and operating system. This barebone system comes equipped with an Intel Core i3-7100U processor and offers various connectivity options.



Specifications

Model Number:  NUC7I3BNK

Brand:  Intel

Alt Part Number(s):  NUC7I3BNK

Product Type:  Barebone System



Technical Description

Brand:  Intel

Model:  NUC7I3BNK

CPU: Intel Core i3-7100U, Dual-Core, 2.40GHz, 3MB Cache, 15W TDP

RAM: 2x DDR4 SO-DIMM slots, dual channel, PC4-17000S (2133MHz), up to 32GB

Storage: 1x M.2 M-Key slot (PCIe 3.0 x4, supports 2280/2242 SSDs)

Graphics: Intel HD Graphics 620 (integrated),

• 1x HDMI 2.0 (4K @ 60Hz)
• 1x Mini DisplayPort 1.2

USB Ports: 4x USB 3.0

Networking:

• 1x Gigabit LAN (Intel I219-V)
• WLAN 802.11a/b/g/n/ac
• Bluetooth 4.2

Audio: 7.1 channel (Intel HD Audio),

• 1x 3.5mm combo jack

Other Features:

• SD card reader (SD/SDHC/SDXC)
• NFC header
• VESA mounting support (75x75 mm and 100x100 mm, mount included)

Power Supply: External 65W

Boost your enterprise performance with the Intel NUC7I3BNK NUC Barebone System Mini PC 1 x Processor Support Intel—ORDER TODAY!

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
