Overview

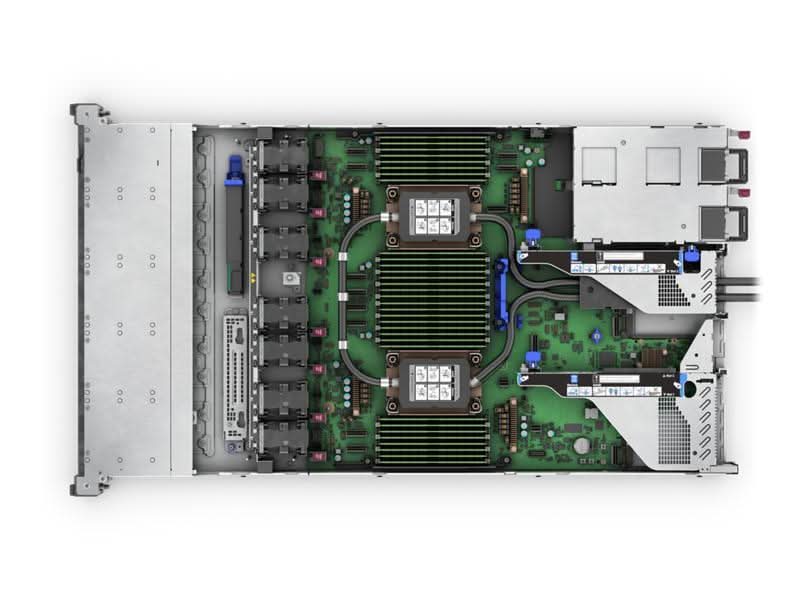

HPE P89244-005 ProLiant Compute DL360 Gen12 is a 1U server powered by an Intel Xeon 6517P 16 core processor running at 3.2 GHz. It includes 64 GB DDR5 memory at 6400 MHz, supports up to 8 TB RAM, offers 8 drive bays, and delivers enterprise networking and redundant 1000 W power supplies.



Specifications

Model Number:  P89244-005

Brand:  HPE

Alt Part Number(s):  P89244-005

Product Type:  Server



Technical Description

Brand:  HPE

Model:  P89244-005

Cabinet Form Factor: 1U, GPU Server

Processor / Type: Xeon

Processor / Manufacturer: Intel

Processor / Number: 6517P

Processor / Clock Speed: 3.2 GHz

Max Turbo Frequency: 4.2 GHz

Multi-Core Technology: 16-Core

Processor / Installed Quantity: 1

Cache Memory Installed Size: 72 MB

RAM / Technology: DDR5

RAM / Total Installed Size: 64 GB

RAM / Memory Speed: 6400 MHz

RAM Form Factor: RDIMM

RAM / Installed Quantity: 2

RAM / Total Slots Quantity: 32

RAM / Max Supported Size: 8 TB

Hard Drive / Size: 2.5"

Hard Drive / Bays Quantity: 8

Storage Controller Type: MR408i-o; NS204i-u

Networking Type: Ethernet

Data Link Protocol: Gigabit Ethernet

Network Controller: Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter

Power / Device Type: Power Supply

Power / Installed Quantity: 2

Power / Provided: 1000 Watt

Power / Voltage Required: 100 to 240 VAC

80 PLUS Certification: 80 PLUS Titanium

Interfaces & Connections: iLO Service; USB 3.2 Gen1; VGA; iLO Management

Front I/O Ports: iLO Service; USB 3.2 Gen1

Rear I/O Ports: VGA; USB 3.2 Gen1; iLO Management

Expansion Slots Total (Free): Maximum 3 PCIe Gen5 slots (x16 lanes each); Maximum 2 OCP3.0 slots (x16 lanes each)

Width: 17.11 Inch

Depth: 29.65 Inch

Height: 1.69 Inch

Service & Support Type: Three years of parts; Three years of labor; Three years of on-site support coverage

Min Operating Temperature: 10 Celsius

Max Operating Temperature: 35 Celsius

Humidity Range Operating: 8% to 90%
