Overview

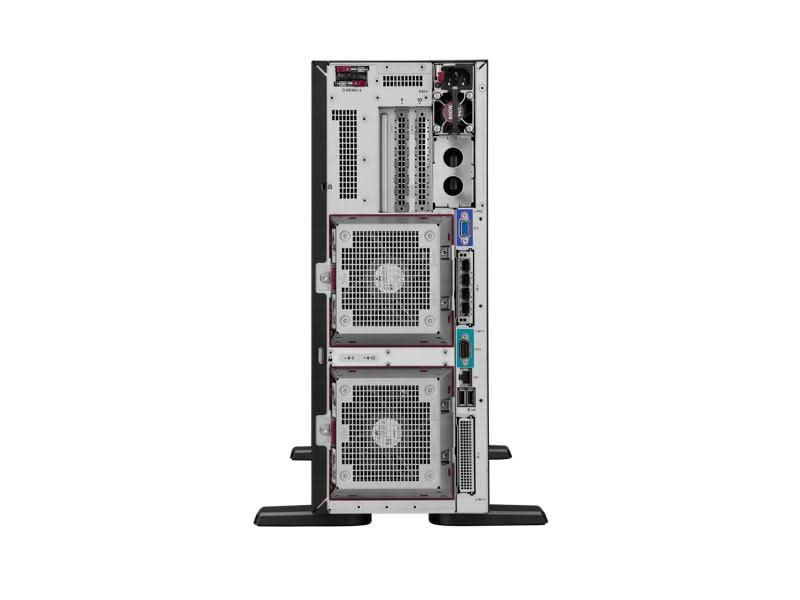

HPE P87796-005 ProLiant Compute ML350 Gen12 is a tower server powered by an Intel Xeon 6505P 12 core processor running at 2.2 GHz. It includes 64 GB DDR5 memory at 6400 MHz, dual 480 GB SATA SSDs, supports up to 8 TB RAM, and provides redundant 800 W power supplies.



Specifications

Model Number:  P87796-005

Brand:  HPE

Alt Part Number(s):  P87796-005

Product Type:  Server



Technical Description

Brand:  HPE

Model:  P87796-005

Cabinet Form Factor: 4U

Processor / Type: Xeon

Processor / Manufacturer: Intel

Processor / Clock Speed: 2.2 GHz

Max Turbo Frequency: 4.1 GHz

Processor / Number: 6505P

Multi-Core Technology: 12-Core

Processor / Installed Qty: 1

Cache Memory Installed Size: 48 MB

RAM / Technology: DDR5

RAM / Total Installed Size: 64 GB

RAM / Memory Speed: 6400 MHz

RAM Form Factor: RDIMM

RAM / Installed Qty: 1

RAM / Total Slots Qty: 32

RAM / Max Supported Size: 8 TB

Hard Drive / Type: SSD

Hard Drive / Size: 2.5"

Hard Drive / Interface Type: SATA 6 Gb/s

Hard Drive / Bays Qty: 8

SSD Capacity: 480 GB

SSD / Installed Qty: 2

Networking Type: Ethernet

Data Link Protocol: Gigabit Ethernet

Network Controller: Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter

Storage Controller Type: MR408i-o

Power / Device Type: Power Supply

Power / Installed Qty: 2

Power / Provided (W): 800 Watt

80 PLUS Certification: 80 PLUS Platinum

Interfaces & Connections: DisplayPort 1.1a; USB 3.2 Gen1; iLO service; VGA; iLO management

Front I/O Ports: DisplayPort 1.1a; USB 3.2 Gen1; iLO service

Rear I/O Ports: VGA; iLO management; USB 3.2 Gen 1

Expansion Slots Total (Free): Up to 10 PCIe Gen5; 2 OCP slots

Width: 6.85 Inch

Depth: 28 Inch

Height: 18.2 Inch

Service & Support Type: Three years of parts; three years of labor; three years of on-site support coverage

Min Operating Temperature: 10 Celsius

Max Operating Temperature: 35 Celsius

Humidity Range Operating: 8% to 90%



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
