Overview

HPE P87790-005 ProLiant Compute DL320 Gen12 is a 1U server powered by an Intel Xeon 6505P 12 core processor running at 2.2 GHz. It includes 64 GB DDR5 memory at 6400 MHz, dual 480 GB SATA SSDs, 8 drive bays, and redundant 1000 W power supplies.



Specifications

Model Number:  P87790-005

Brand:  HPE

Alt Part Number(s):  P87790-005

Product Type:  Server



Technical Description

Brand:  HPE

Model:  P87790-005

Cabinet Form Factor: 1U, GPU Server

Processor / Type: Xeon

Processor / Manufacturer: Intel

Processor / Clock Speed: 2.2 GHz

Max Turbo Frequency: 4.1 GHz

Processor / Number: 6505P

Multi-Core Technology: 12-Core

Processor / Installed Qty: 1

Cache Memory Installed Size: 48 MB

RAM / Technology: DDR5

RAM / Total Installed Size: 64 GB

RAM / Memory Speed: 6400 MHz

RAM Form Factor: RDIMM

RAM / Installed Qty: 1

RAM / Total Slots Qty: 16

RAM / Max Supported Size: 4 TB

Hard Drive / Type: SSD

Hard Drive / Size: 2.5"

Hard Drive / Interface Type: SATA 6 Gb/s

Hard Drive / Bays Qty: 8

SSD Capacity: 480 GB

SSD / Installed Qty: 2

Networking Type: Ethernet

Data Link Protocol: Gigabit Ethernet

Network Controller: Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter

Storage Controller Type: MR408i-o

Power / Device Type: Power Supply

Power / Installed Qty: 2

Power / Provided (W): 1000 Watt

80 PLUS Certification: 80 PLUS Titanium

Interfaces & Connections: iLO Service; USB 3.2 Gen1; VGA; 2 USB 3.2; Dedicated iLO network

Front I/O Ports: iLO Service; USB 3.2 Gen1

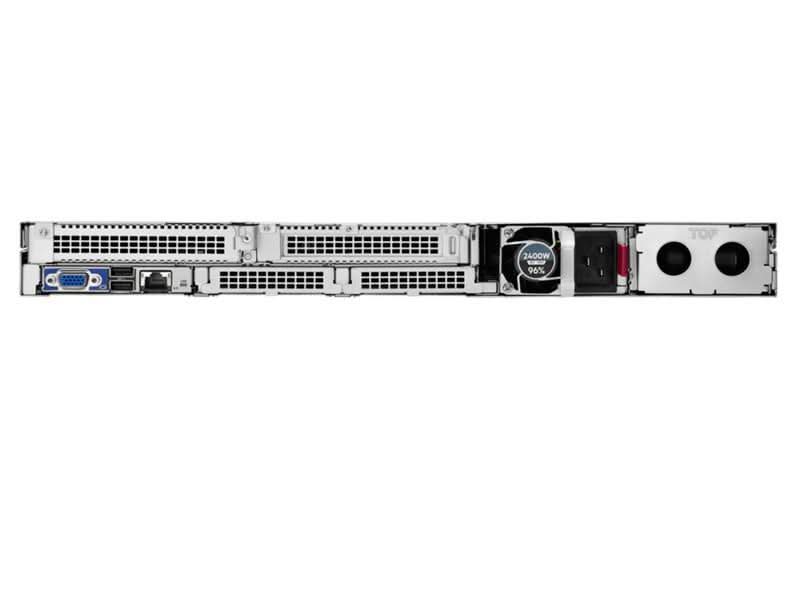

Rear I/O Ports: VGA; 2 USB 3.2; Dedicated iLO network

Expansion Slots Total (Free): Up to 6 PCIe Gen5; 2 OCP 3.0 with Rich IO Processor

Width: 17.11 Inch

Depth: 23.92 Inch

Height: 1.69 Inch

Service & Support Type: Three years of parts; three years of labor; three years of on-site support coverage

Min Operating Temperature: 10 Celsius

Max Operating Temperature: 35 Celsius

Humidity Range Operating: 8% to 90%



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
